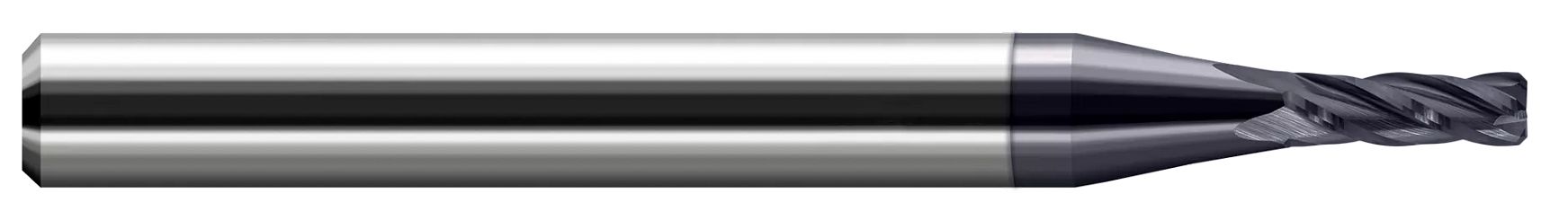

Harvey Tool 805016-C3 | 1/4" Diameter x 1/4" Shank x 3/4" LOC x 2-1/2" OAL 4 Flute AlTiN Coated Carbide Corner Radius End Mill

Harvey Tool 805016-C3 | 1/4" Diameter x 1/4" Shank x 3/4" LOC x 2-1/2" OAL 4 Flute AlTiN Coated Carbide Corner Radius End Mill

SKU: 25174780

$45.80 USD
$45.80 USD $45.80 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 27 Grams

Ver todos los detalles

Harvey Tool Corner Chamfer End Mills are CNC ground in the USA from solid carbide, feature a 45 Degree corner chamfer to protect the corners of the end mill, and create consistent heat and wear along the chamfer by distributing forces evenly.

  • Chamfered corner creates consistent heat and wear along chamfer by distributing forces evenly
  • 45 Degree corner chamfer protects corners on the end mill and can create small chamfers and edge breaks
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.2500" (1/4)
Length of Cut (Inch) 0.7500" (3/4)
Overall Length (Inch) 2.5000" (2-1/2)
Chamfer 0.0100"
Number of Flutes 4
Angle per Side 45
LOC Multiple 3x
Shank Diameter (Inch) 0.2500" (1/4)
Coating/Finish C3
