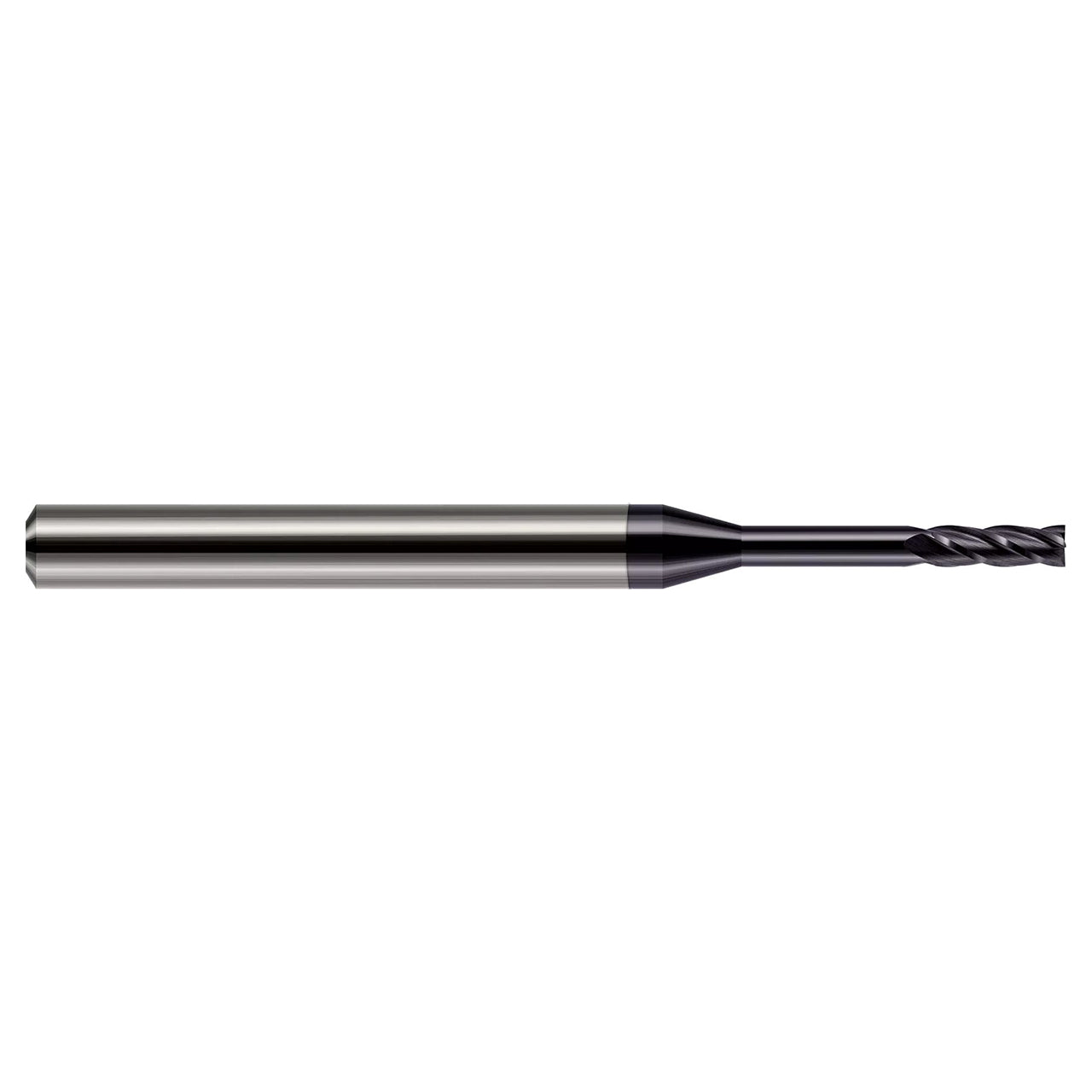

Miniature end mills - square - long reach, standard flute feature a reduced neck diameter to avoid heeling.
Features- Length of Cut = 3x Diameter
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 802310-C3 |
| Cutter Diameter (Inch) | 0.1562" (5/32) |
| Neck Diameter (Inch) | 0.1520" |
| Length of Cut (Inch) | 0.4700" |
| Overall Reach (Inch) | 1.0930" (1-3/32) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Number of Flutes | 4 |
| LOC Multiple | (3x) |
| Reach Multiple | (7x) |
| Coating | C3 |
| Profile | Square |
