Product Specifications
| Manufacturer Part Number | 794506-C3 |
| Cutter Diameter (Decimal Inch) | 0.094" |
| Neck Diameter (Decimal Inch) | 0.038" |
| Length of Cut (Decimal Inch) | 0.086" |
| Neck Length (Decimal Inch) | 0.250" |
| Neck Length (Inch) | 1/4" |
| Overall Reach (Decimal Inch) | 0.337" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Radius (Decimal Inch) | 0.038" |
| Wrap Angle (Degree) | 300 Degree |
| Number of Flute | 2 |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | C3 |

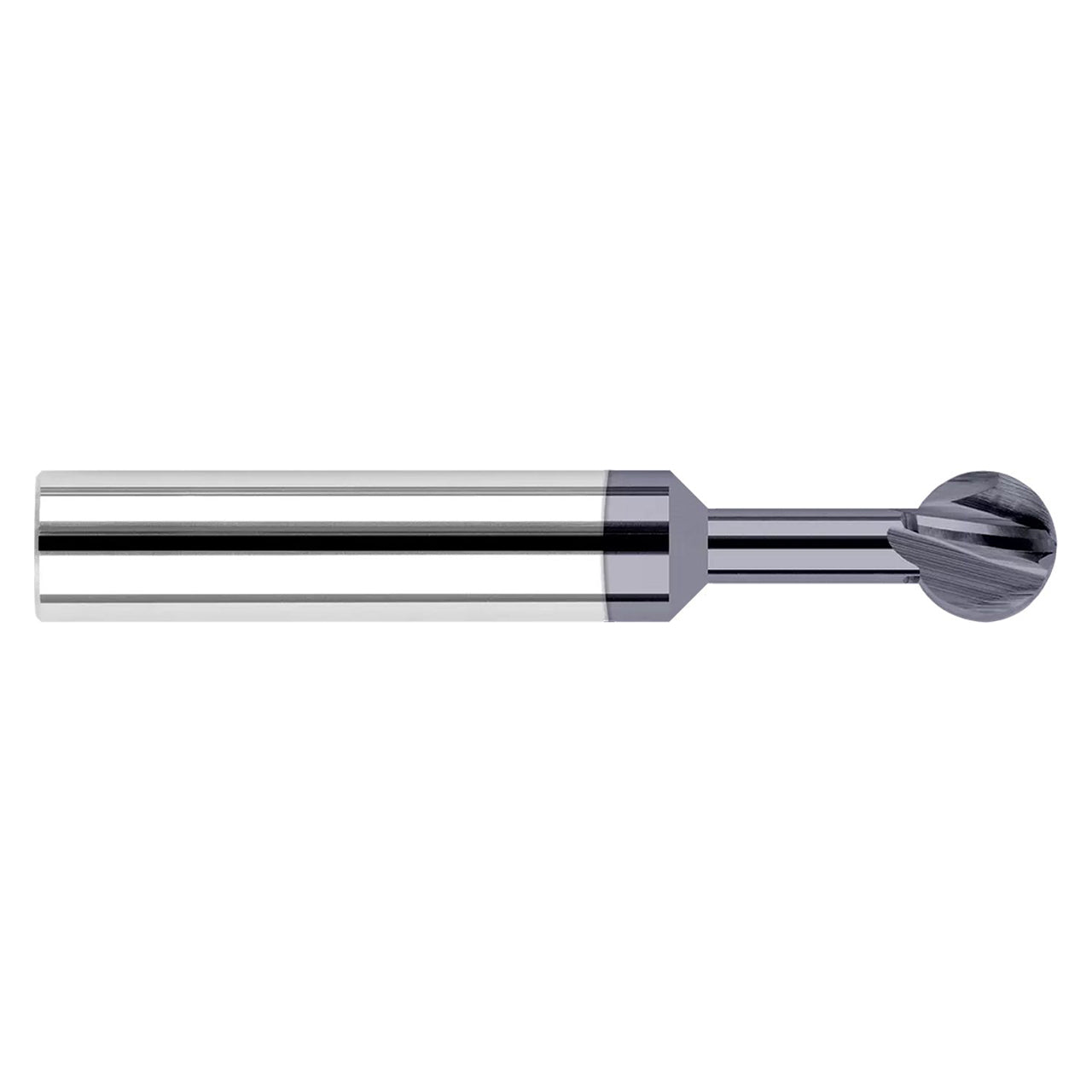

| Product Type | Undercutting End Mill |
