Harvey Tool

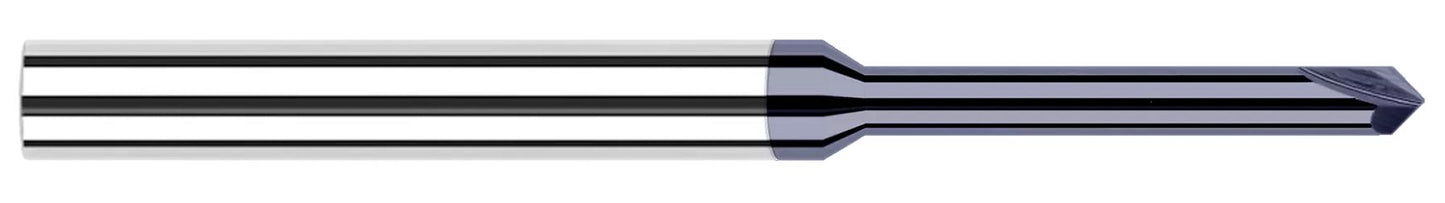

Harvey Tool 788345-C3 | 1/8" Shank 90 Degree Included Angle 2 Flute AlTiN Coated Carbide Chamfer Mill

Harvey Tool 788345-C3 | 1/8" Shank 90 Degree Included Angle 2 Flute AlTiN Coated Carbide Chamfer Mill

SKU: 25186420

Precio habitual $32.80 USD
Precio habitual $32.80 USD Precio de oferta $32.80 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 14 Grams

En existencias

Free Shipping on Orders Over $75

Ver todos los detalles

pointed, which is great for chamfering and deburring in small and narrow areas.

  • Pointed - 2 flute style for deburring and chamfering in narrow grooves, slots and small holes

Product Specifications
Neck Diameter (Inch) 0.1180" (3 mm)
Length of Cut (Inch) 0.0590"
Overall Reach (Inch) 0.5910"
Overall Length (Inch) 2.5000" (2-1/2)
Tip 0.0050"
Number of Flutes 2
Angle per Side 45
Included Angle 90
Reach Multiple 5x
Type I
Shank Diameter (Inch) 0.1250" (1/8)
Coating/Finish C3
