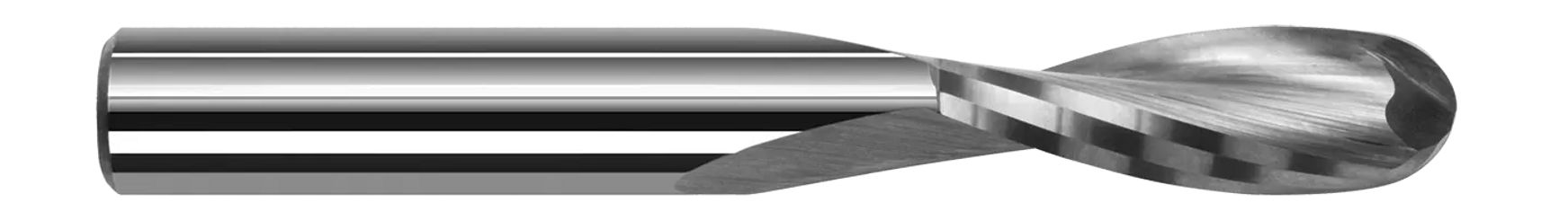

This offering of solid carbide, ball, upcut 2 flute end mills for plastics has been designed by Harvey Tool with a ball end for profiling complex shapes, but it also increases rake and relief for improved cutting action at the tip of the ball, making it an excellent choice for milling plastic materials.
- Ball end for profiling complex shapes
- Ball end has increased rake and relief for improved cutting action at tip of ball
- Slower helix for reduces vertical forces, making design preferable for fiber-reinforced applications and vacuum table setups
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1250" (1/8) |
| Length of Cut (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 2.0000" (2) |
| Number of Flutes | 2 |
| LOC Multiple | 4x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
