Harvey Tool

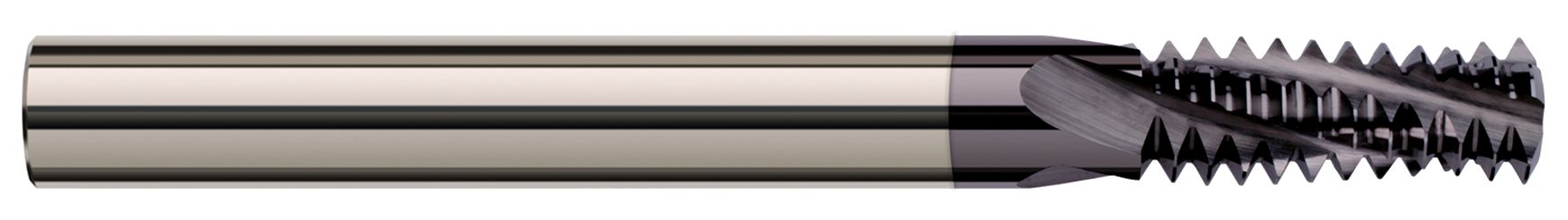

Harvey Tool 784314-C3 | 1/4 3/8-18 Thread 0.3050" Diameter x 5/8" LOC x 5/16" Shank 4 Flute AlTiN Coated Carbide Helical Flute Thread Mill

Harvey Tool 784314-C3 | 1/4 3/8-18 Thread 0.3050" Diameter x 5/8" LOC x 5/16" Shank 4 Flute AlTiN Coated Carbide Helical Flute Thread Mill

SKU: 25186613

$243.40 USD
$243.40 USD $243.40 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 50 Grams

Ver todos los detalles

This offering of Harvey Tool Thread Milling Cutters - Multi-Form is engineered to create internal and external National Pipe Taper (N,P.T.F.) threads. These helically fluted, solid carbide tools can cut both right and left hand threads.

  • Cuts internal and external 60Degree National Pipe Taper (N.P.T.F.) threads
  • Mills right hand and left hand threads
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.3050"
Length of Cut (Inch) 0.6250" (5/8)
Overall Length (Inch) 3.0000" (3)
Number of Flutes 4
Angle per Side 1 Degree 47'
Included Angle 60
Size 1/4, 3/8-18
Shank Diameter (Inch) 0.3125" (5/16)
Coating/Finish C3
