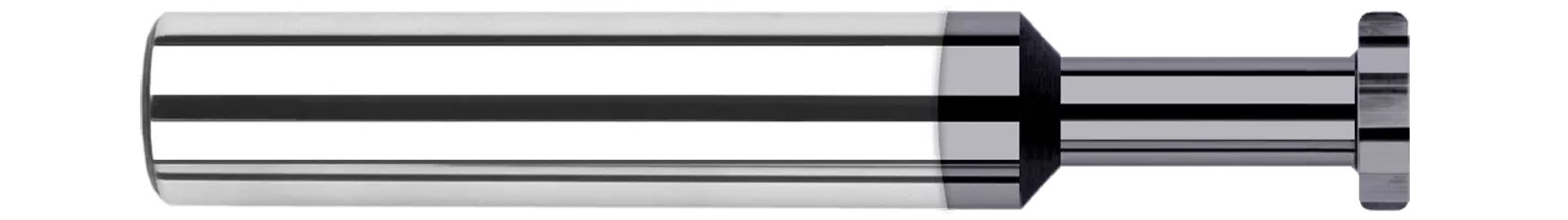

Browse from Harvey Tool's massive, fully stocked selection of corner radius profile Keyseat Cutters.
- Both sides of cutter are dished for clearance
- Corner radius for improved strength
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.3125" (5/16) |
| Neck Diameter (Inch) | 0.1100" (2.8 mm) |
| Cutter Width (Inch) | 0.0930" (3/32) |
| Neck Length (Inch) | 0.1870" (3/16) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Radial Depth of Cut (Inch) | 0.0910" |
| Number of Flutes | 6 |
| Corner Radius | 0.0100" |
| Reach Multiple | 0.5x |
| Type | II |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Coating/Finish | Uncoated |
| Top Corner Radius | 0.01 |
