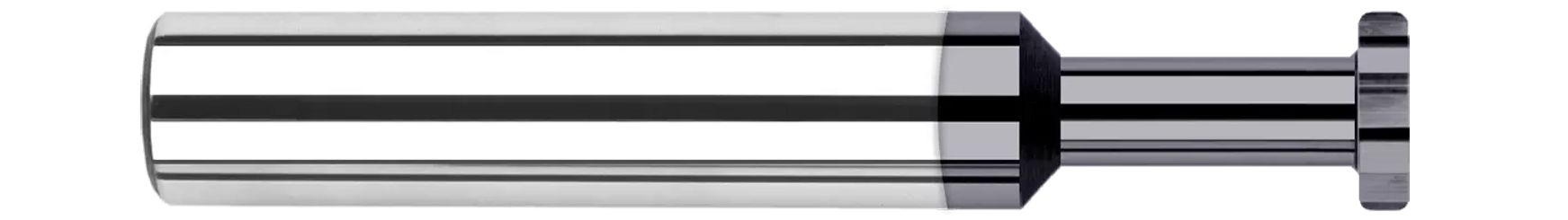

Browse from Harvey Tool's massive, fully stocked selection of corner radius profile Keyseat Cutters.
- Both sides of cutter are dished for clearance
- Corner radius for improved strength
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Neck Diameter (Inch) | 0.1250" (1/8) |
| Cutter Width (Inch) | 0.1250" (1/8) |
| Neck Length (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Radial Depth of Cut (Inch) | 0.0530" |
| Number of Flutes | 6 |
| Corner Radius | 0.0200" |
| Reach Multiple | 1.5x |
| Type | I |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | Uncoated |
| Top Corner Radius | 0.02 |
