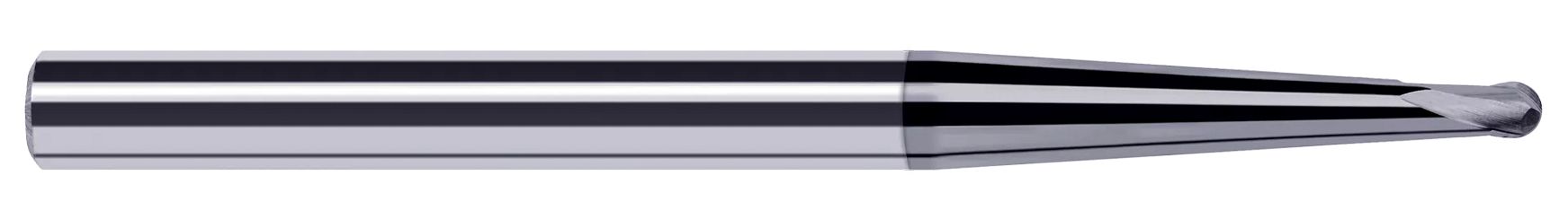

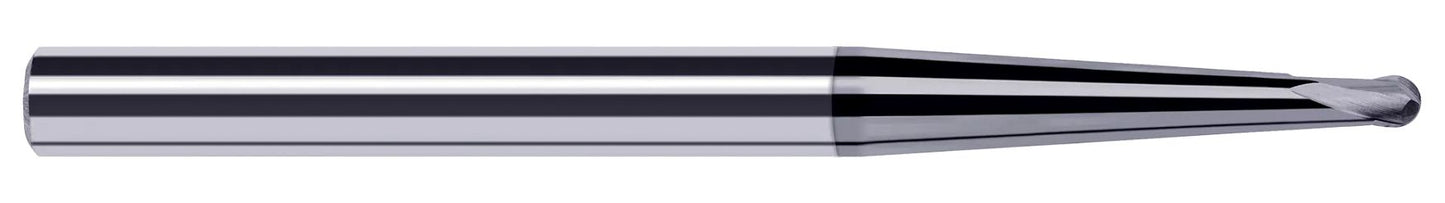

This line of High Helix End Mills for Medium Alloy Steels - Ball - Tapered Reach (Mold Cutters) is ideal for contour machining of mold and die cavities. Achieve superior performance in readily machinable mold steels, stainless steels, and tool steels with this fully stocked tool.
- Excellent in Readily Machinable Mold Steels, Stainless Steels, & Tool Steels
- Very short length of cut and solid tapered neck for maximum rigidity
- Ideal for contour machining of mold and die cavities
- 1 Degree, 1.5 Degree, 3 Degree, 5 Degree, and 7 Degree neck angles to address common draft angles in molds
- 35 Degree helix for increased cutting performance
- h6 shank tolerance for high precision tool holders
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- 2 flutes to center
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0620" (1/16) |
| Neck Diameter (Inch) | 0.2210" |
| Length of Cut (Inch) | 0.0500" |
| Tapered Reach (Inch) | 0.5000" (1/2) |
| Overall Reach (Inch) | 0.5250" |
| Overall Length (Inch) | 2.0000" (2) |
| Number of Flutes | 2 |
| Neck Angle | 10 |
| LOC Multiple | 0.8x |
| Type | I |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | C6 |
