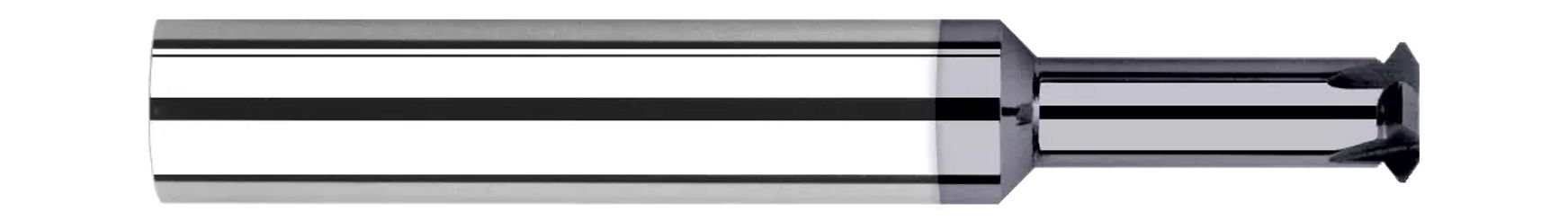

Designed for threading hardened steels 46-68Rc, this single thread form tool is designed to mill common pitch sizes. The top of its included angle is ground to a flat for increased wear resistance, ensuring that your tool life is maximized.
- Designed for threading hardened steel 48-68Rc
- Single thread form designed to mill common pitch sizes
- Tip of included angle ground to a flat for increased wear resistance
- Large rigid core diameter and eccentric relief for improved strength
- Mills left hand and right hand threads
- Cuts internal and external 60 Degree UN threads
- h6 shank tolerance for high precision tool holders
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Select carbide grade for improved edge retention
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0980" (2.5 mm) |
| Neck Diameter (Inch) | 0.0620" (1/16) |
| Length of Cut (Inch) | 0.0230" |
| Overall Length (Inch) | 2.0000" (2) |
| Max Depth of Thread (Inch) | 0.3120" (5/16) |
| Tip Flat | 0.0025" |
| Number of Flutes | 4 |
| Angle per Side | 30 |
| Included Angle | 60 |
| Size | 6 |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | C6 |
