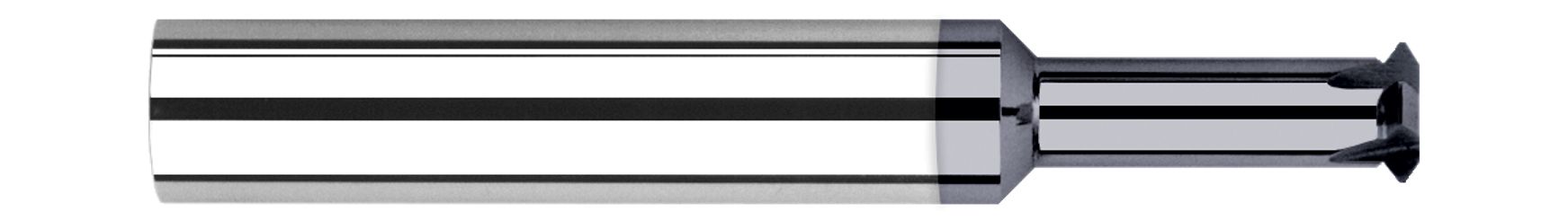

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.
- Single thread form can mill multiple pitches
- Cuts internal and external 60 Degree UN threads
- Mills right hand and left hand threads
- Tip of included angle ground to a point
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (mm) | 1.160 mm |
| Neck Diameter (mm) | 0.742 mm |
| Length of Cut (mm) | 0.268 mm |
| Overall Length (mm) | 38.000 mm |
| Max Depth of Thread (mm) | 3.500 mm |
| Tip Flat | 0.035 mm |
| Number of Flutes | 3 |
| Angle per Side | 30 |
| Included Angle | 60 |
| Reach Multiple | 5x |
| Size | M1.6 |
| Shank Diameter (mm) | 3.000 mm |
| Metric | Yes |
| Coating/Finish | C6 |
