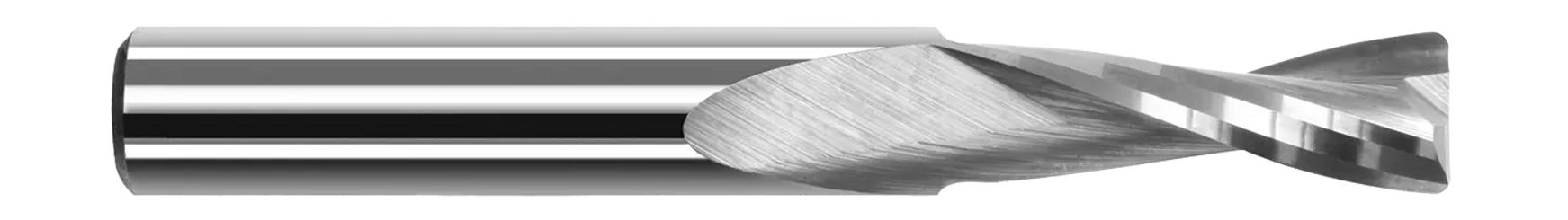

The solid carbide, 2 flute, corner radius upcut end mill for plastics has the ability to plunge and ramp due to its center cutting design, and has a slower helix which reduces lifting forces, making this an excellent choice for milling fiber-reinforced materials on vacuum table set ups.
- High rake, high relief design with large flute valley maximizes chip removal and performance
- Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
- Center cutting design improves plunging and ramping
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 2 |
| Corner Radius | 0.0200" |
| LOC Multiple | 1.5x |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | Uncoated |
