• 760231-C3
1 1

Harvey Tool

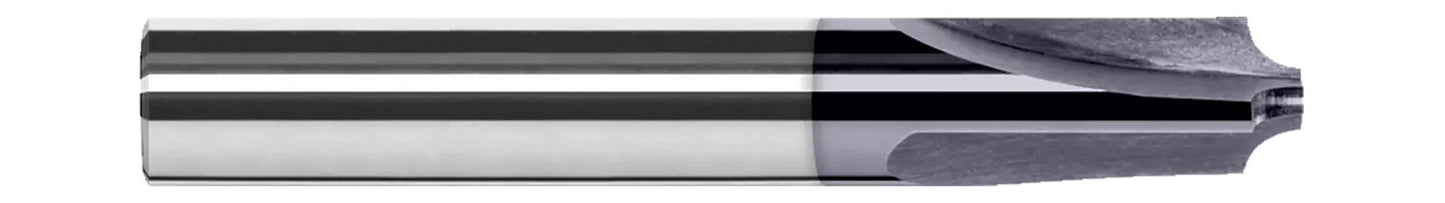

Harvey Tool 760231-C3 | 0.0460" Diameter x 1/8" Shank x 1-1/2" OAL 3 Flute AlTiN Coated Carbide Single End Corner Rounding End Mill

Harvey Tool 760231-C3 | 0.0460" Diameter x 1/8" Shank x 1-1/2" OAL 3 Flute AlTiN Coated Carbide Single End Corner Rounding End Mill

SKU: 25185765

$45.20 USD
$45.20 USD $45.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

Ver todos los detalles

This Corner Rounding End Mills - 3 Flute - Flared Harvey Tool product selection features tooling with 5 Degree flares tangent at the pilot.

  • Single end
  • Cutting on radius and end only (not center cutting)
  • 5 Degree flares tangent at pilot and shoulder to avoid steps
  • Axial depth of cut = radius plus .005"
  • 3 flutes
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Pilot Diameter (Inch) 0.0460"
Overall Length (Inch) 1.5000" (1-1/2)
Radius 0.0310" (1/32)
Number of Flutes 3
Shank Diameter (Inch) 0.1250" (1/8)
Coating/Finish C3
Pilot Flare 5
Shoulder Flare 5
