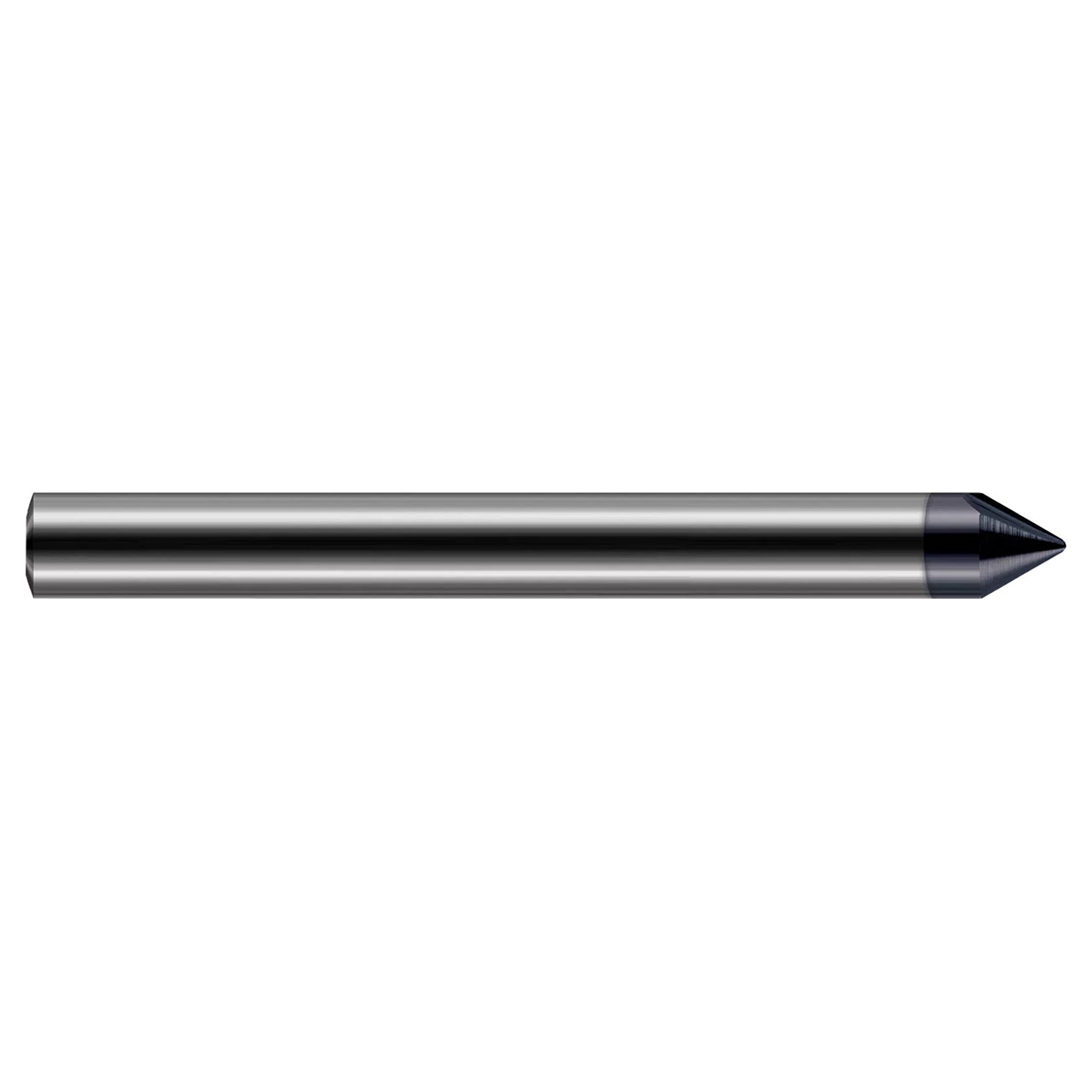

Harvey Tool 756608-C6 | 45 Degree x 0.1260" LOC x 0.1250" (1/8) Shank x AlTiN Nano Coated Carbide Tip Radius Engraving Cutter

Harvey Tool 756608-C6 | 45 Degree x 0.1260" LOC x 0.1250" (1/8) Shank x AlTiN Nano Coated Carbide Tip Radius Engraving Cutter

SKU: 25211398

Precio habitual $34.40 USD
Precio habitual $34.40 USD Precio de oferta $34.40 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

14 en existencias

Free Shipping on Orders Over $75

Ver todos los detalles
  • Radius on tip creates radius in bottom of groove and improves strength
  • Relieved for right hand milling
  • CNC ground in the USA
  • Half-round drill style
  • Double-ended
  • Solid carbide

Product Specifications
Tool Number 756608-C6
Length of Cut (Inch) 0.1260"
Overall Length (Inch) 1.5000" (1-1/2)
Radius (Inch) 0.0150" (1/64)
Angle per Side 22.5
Included Angle 45
Flutes 2
Type II
Shank Diameter (Inch) 0.1250" (1/8)
Coating C6
