Harvey Tool

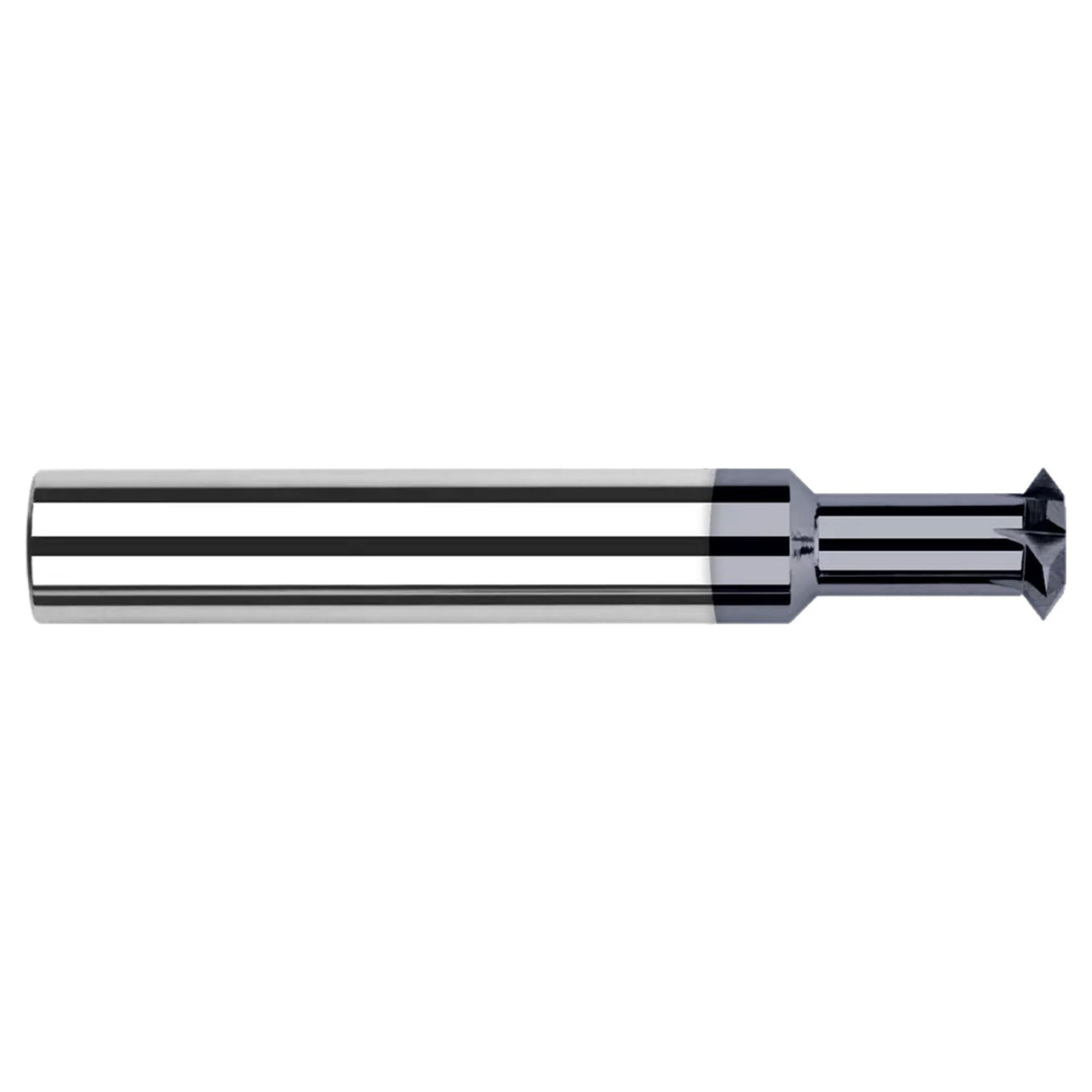

Harvey Tool 754920-C3 | 0.3125" (5/16) Diameter x 0.1250" (1/8) Width x 0.3125" (5/16) Shank x 90 Degree AlTiN Coated Carbide Double Angle Cutter

Harvey Tool 754920-C3 | 0.3125" (5/16) Diameter x 0.1250" (1/8) Width x 0.3125" (5/16) Shank x 90 Degree AlTiN Coated Carbide Double Angle Cutter

SKU: 25211379

$111.60 USD
$111.60 USD $111.60 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 36 Grams

Ver todos los detalles

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations

  • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
  • Reduced neck for long reach machining
  • Tip of included angle ground to a point
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 754920-C3
Cutter Diameter (Inch) 0.3125" (5/16)
Neck Diameter (Inch) 0.1870"
Cutter Width (Inch) 0.1250" (1/8)
Neck Length (Inch) 0.6250" (5/8)
Overall Length (Inch) 2.5000" (2-1/2)
Angle per Side 45
Included Angle 90
Flutes 8
Type I
Shank Diameter (Inch) 0.3125" (5/16)
Coating C3
