Harvey Tool

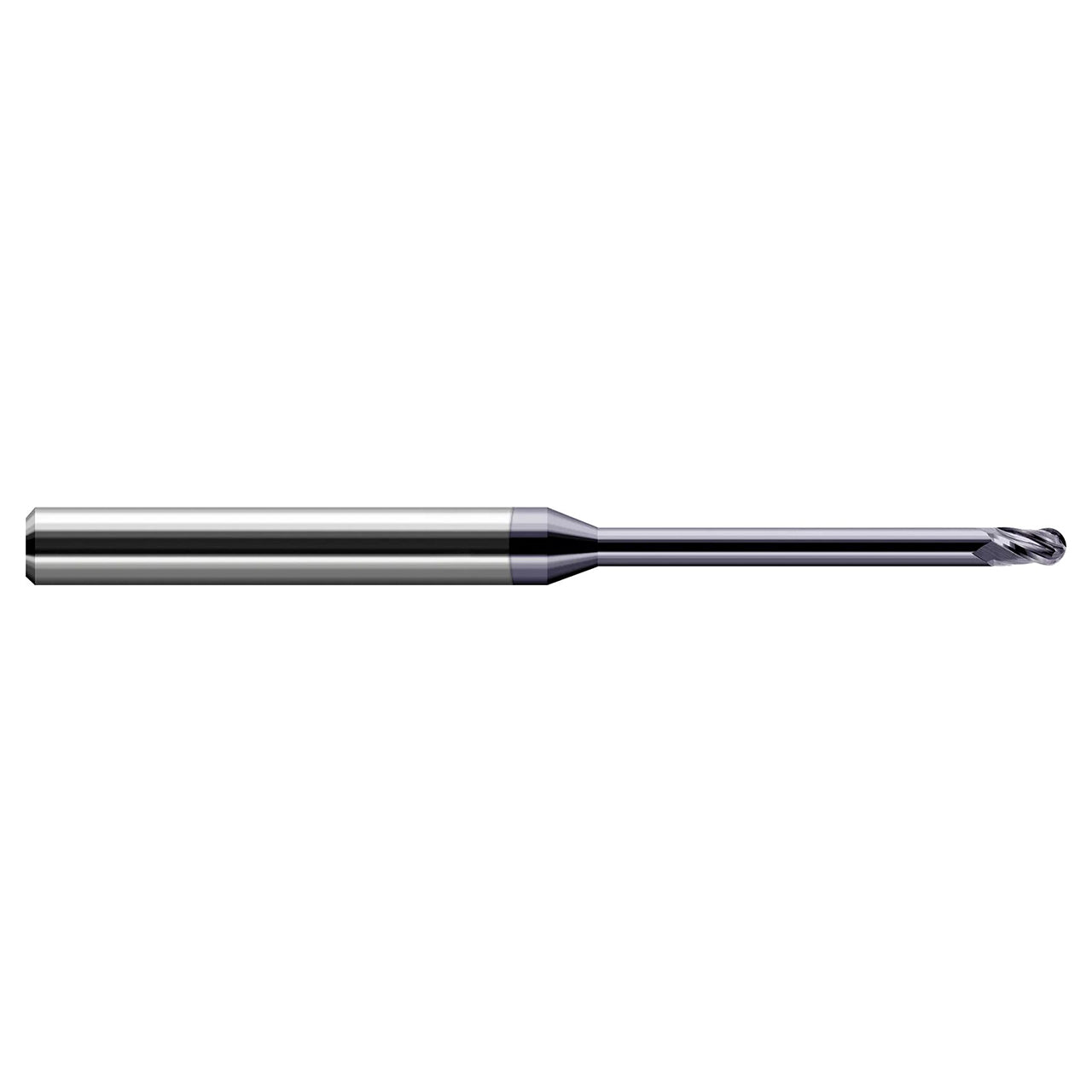

Harvey Tool 754362-C3 | 0.0620" (1/16) Diameter x 0.1250" (1/8) Shank x 0.0930" (3/32) LOC x 2.5000" (2-1/2) OAL x 4 Flutes AlTiN Coated Carbide Miniature Tapered Ball End Mill

Harvey Tool 754362-C3 | 0.0620" (1/16) Diameter x 0.1250" (1/8) Shank x 0.0930" (3/32) LOC x 2.5000" (2-1/2) OAL x 4 Flutes AlTiN Coated Carbide Miniature Tapered Ball End Mill

SKU: 25211375

$54.10 USD
$54.10 USD $54.10 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

Ver todos los detalles

The stub flutes on this Miniature End Mills - Ball - Long Reach, Stub Flute collection of Harvey Tool end mills provides maximum rigidity, while its reduced neck diameter helps to avoid heeling during machining.

  • Long length design for deep cavities
  • Stub flutes for maximum rigidity
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 754362-C3
Cutter Diameter (Inch) 0.0620" (1/16)
Neck Diameter (Inch) 0.0605"
Length of Cut (Inch) 0.0930" (3/32)
Overall Reach (Inch) 0.2500" (1/4)
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 4
LOC Multiple 1.5x
Reach Multiple 4x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C3
