Harvey Tool

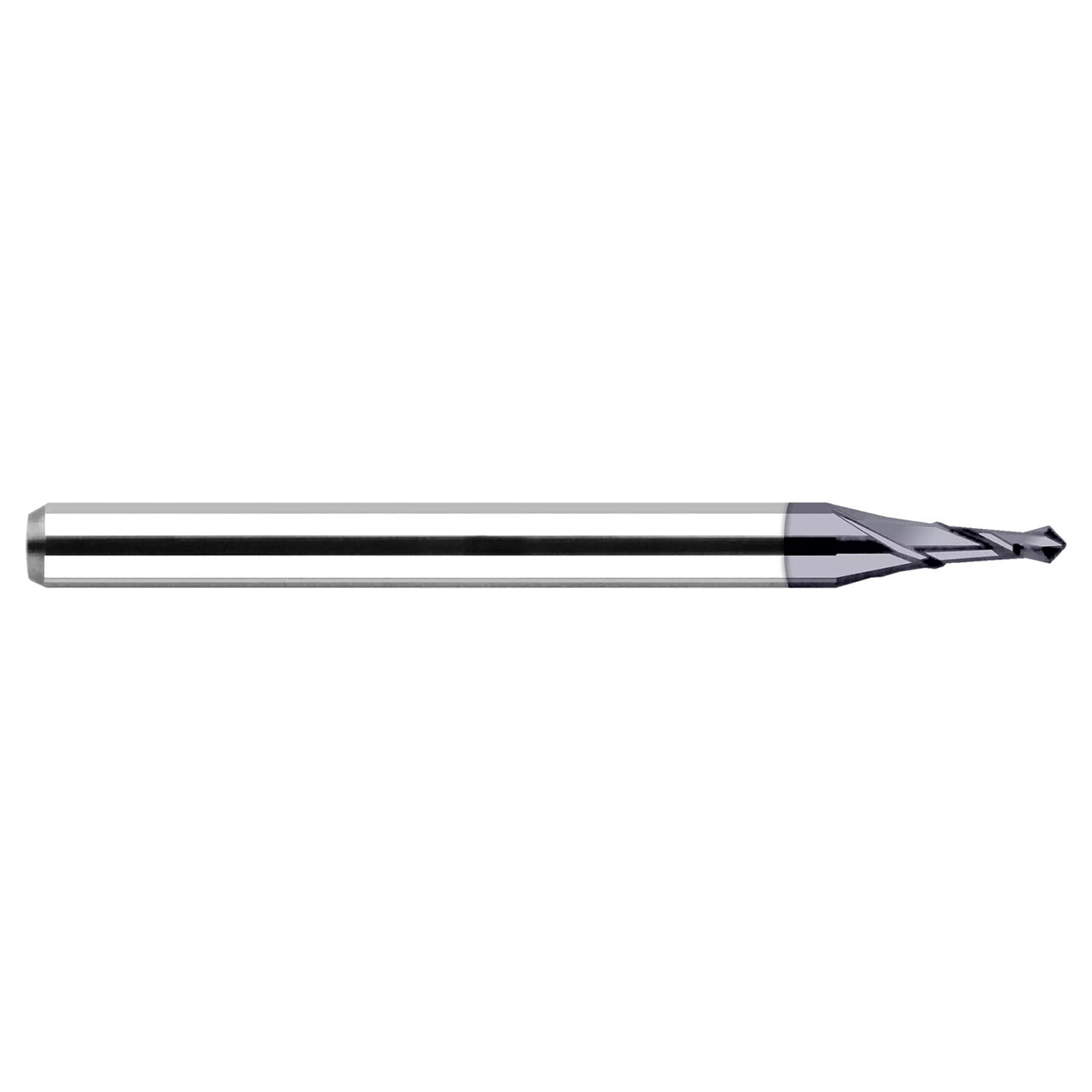

Harvey Tool 752590 | 0.2700" Flute Length x 0.1250" (1/8) Shank x 1.5000" (1-1/2) OAL 2 Flutes Uncoated Carbide Miniature Drill

Harvey Tool 752590 | 0.2700" Flute Length x 0.1250" (1/8) Shank x 1.5000" (1-1/2) OAL 2 Flutes Uncoated Carbide Miniature Drill

SKU: 25211347

$35.00 USD
$35.00 USD $35.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

Ver todos los detalles
  • Thinned Web to Reduce Walking
  • Self-Centering Point Geometry
  • CNC ground in the USA
  • Solid Carbide
  • 2 Flutes

Product Specifications
Tool Number 752590
Drill Diameter (Inch) 0.0900"
Flute Length (Inch) 0.2700"
Overall Length (Inch) 1.5000" (1-1/2)
Angle per Side 71
Included Angle 142
Flutes 2
LOC Multiple 3x
Web Thickness (Inch) 0.0050"
Type I
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
