Harvey Tool

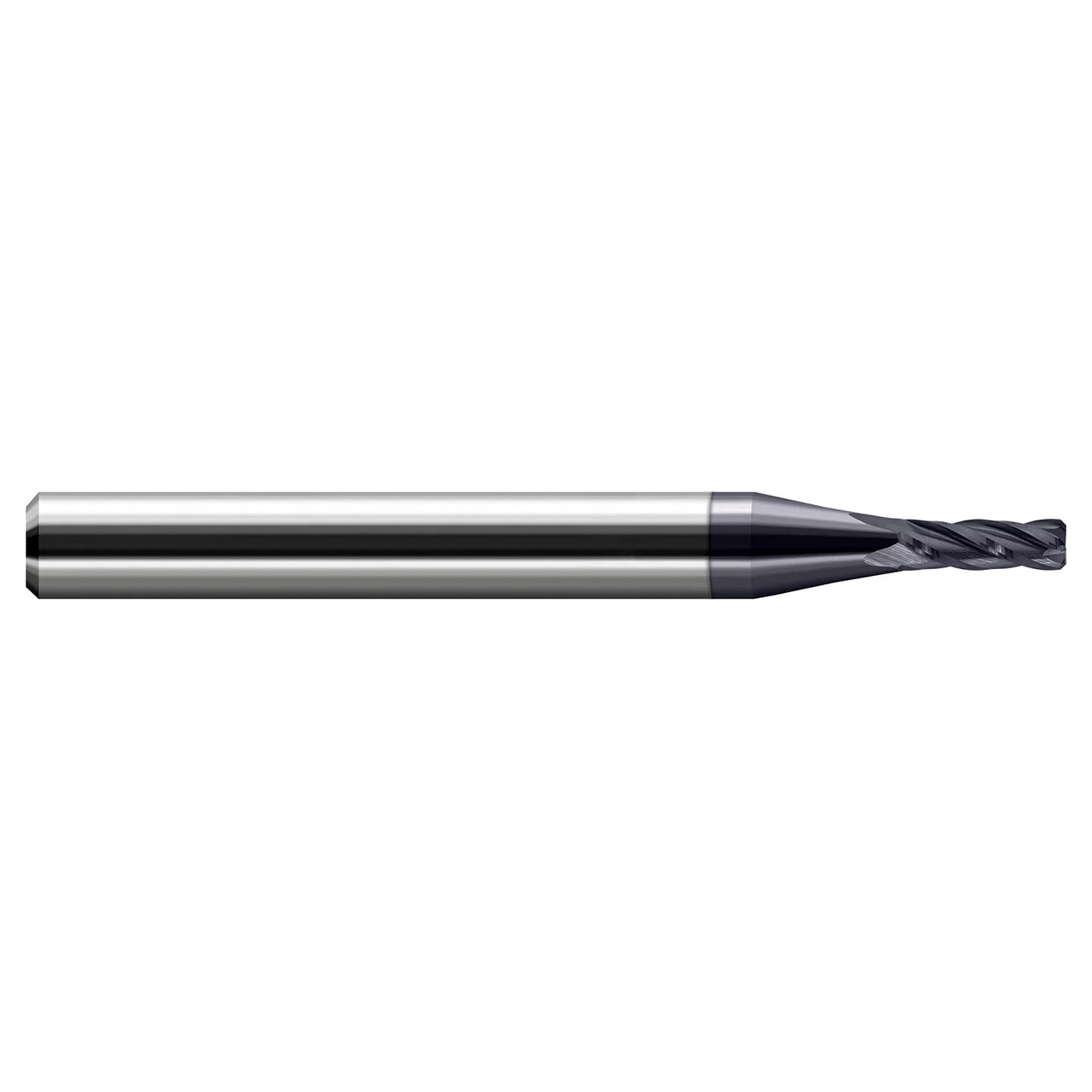

Harvey Tool 751124-C3 | 0.3750" (3/8) Diameter x 0.3750" (3/8) Shank x 1.1250" (1-1/8) LOC x 2.5000" (2-1/2) OAL 4 Flutes AlTiN Coated Carbide Standard Corner Chamfer Miniature End Mills

Harvey Tool 751124-C3 | 0.3750" (3/8) Diameter x 0.3750" (3/8) Shank x 1.1250" (1-1/8) LOC x 2.5000" (2-1/2) OAL 4 Flutes AlTiN Coated Carbide Standard Corner Chamfer Miniature End Mills

SKU: 25211329

$66.40 USD
$66.40 USD $66.40 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 54 Grams

Ver todos los detalles
  • Chamfered corner creates consistent heat and wear along chamfer by distributing forces evenly
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 751124-C3
Cutter Diameter (Inch) 0.3750" (3/8)
Length of Cut (Inch) 1.1250" (1-1/8)
Overall Length (Inch) 2.5000" (2-1/2)
Chamfer Length (Inch) 0.0300"
Angle per Side 45
Included Angle 90
Flutes 4
LOC Multiple 3x
Shank Diameter (Inch) 0.3750" (3/8)
Coating C3
Center Cutting N
