Harvey Tool

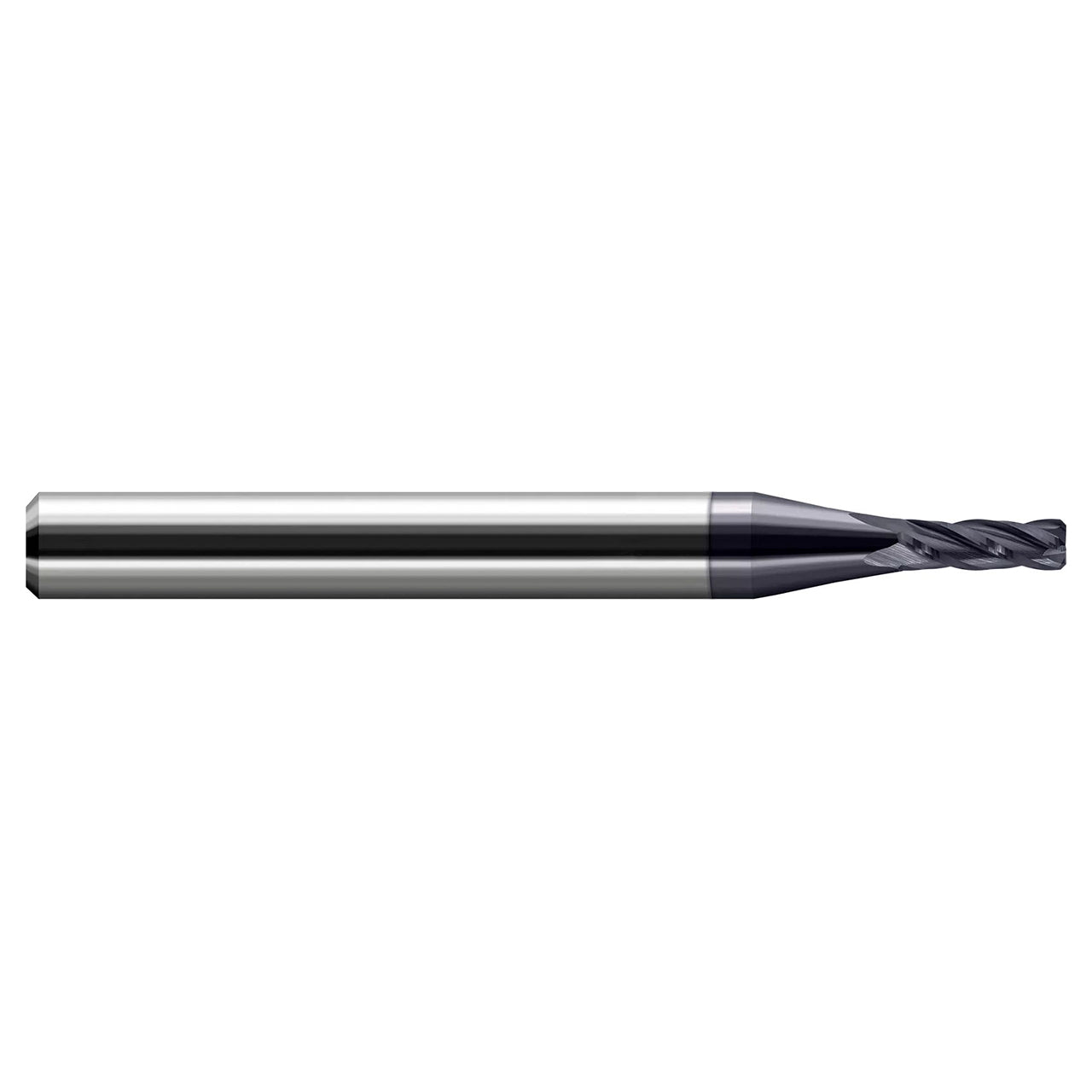

Harvey Tool 751116-C3 | 0.2500" (1/4) Diameter x 0.2500" (1/4) Shank x 0.7500" (3/4) LOC x 2.5000" (2-1/2) OAL 4 Flutes AlTiN Coated Carbide Standard Corner Chamfer Miniature End Mills

Harvey Tool 751116-C3 | 0.2500" (1/4) Diameter x 0.2500" (1/4) Shank x 0.7500" (3/4) LOC x 2.5000" (2-1/2) OAL 4 Flutes AlTiN Coated Carbide Standard Corner Chamfer Miniature End Mills

SKU: 25211327

$46.30 USD
$46.30 USD $46.30 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 27 Grams

Ver todos los detalles
  • Chamfered corner creates consistent heat and wear along chamfer by distributing forces evenly
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 751116-C3
Cutter Diameter (Inch) 0.2500" (1/4)
Length of Cut (Inch) 0.7500" (3/4)
Overall Length (Inch) 2.5000" (2-1/2)
Chamfer Length (Inch) 0.0300"
Angle per Side 45
Included Angle 90
Flutes 4
LOC Multiple 3x
Shank Diameter (Inch) 0.2500" (1/4)
Coating C3
Center Cutting N
