Harvey Tool

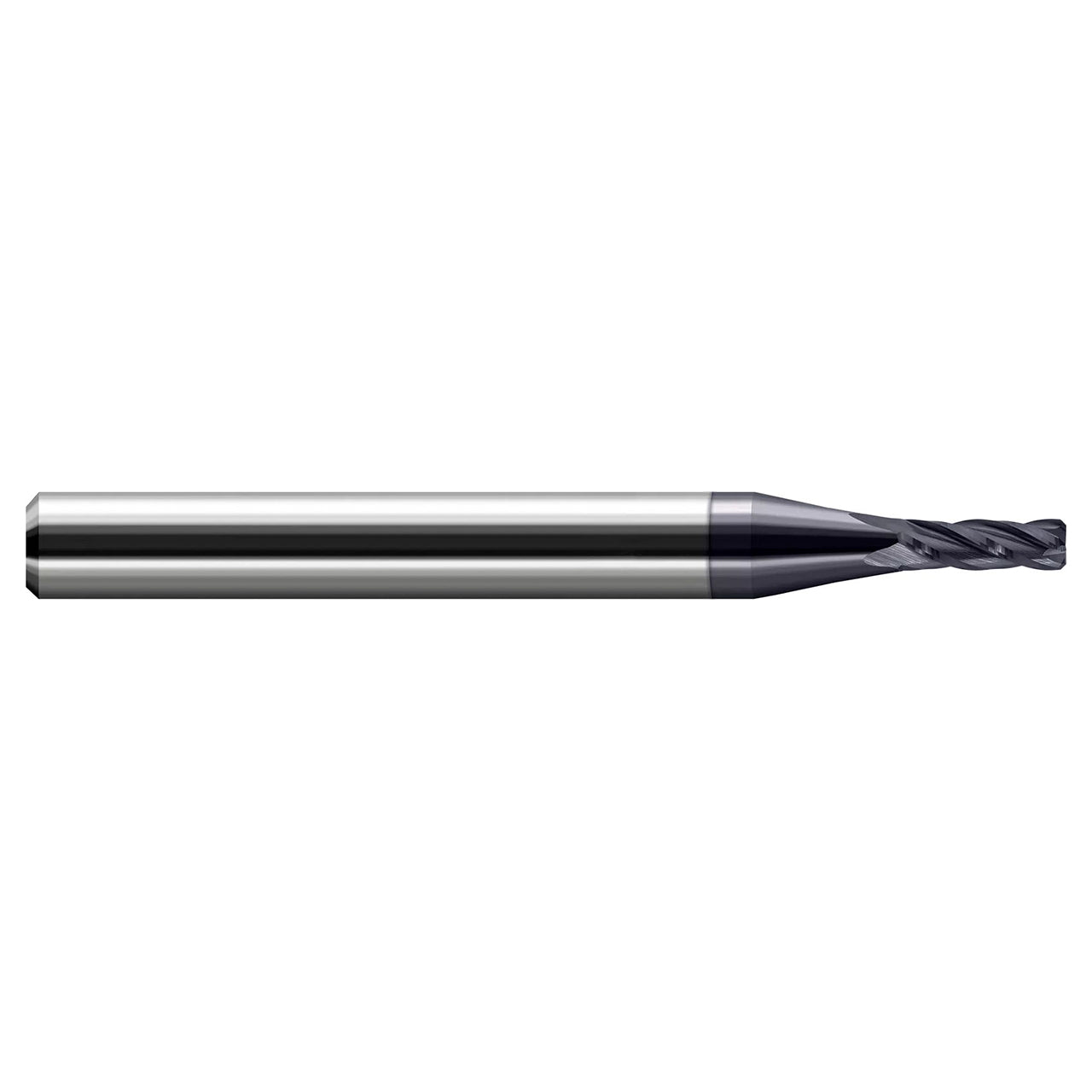

Harvey Tool 751112 | 0.1870" (3/16) Diameter x 0.1875" (3/16) Shank x 0.5700" LOC x 2.0000" (2) OAL 4 Flutes Uncoated Carbide Standard Corner Chamfer Miniature End Mills

Harvey Tool 751112 | 0.1870" (3/16) Diameter x 0.1875" (3/16) Shank x 0.5700" LOC x 2.0000" (2) OAL 4 Flutes Uncoated Carbide Standard Corner Chamfer Miniature End Mills

SKU: 25211324

$30.50 USD
$30.50 USD $30.50 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles
  • Chamfered corner creates consistent heat and wear along chamfer by distributing forces evenly
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 751112
Cutter Diameter (Inch) 0.1870" (3/16)
Length of Cut (Inch) 0.5700"
Overall Length (Inch) 2.0000" (2)
Chamfer Length (Inch) 0.0300"
Angle per Side 45
Included Angle 90
Flutes 4
LOC Multiple 3x
Shank Diameter (Inch) 0.1875" (3/16)
Coating Uncoated
Center Cutting N
