Harvey Tool

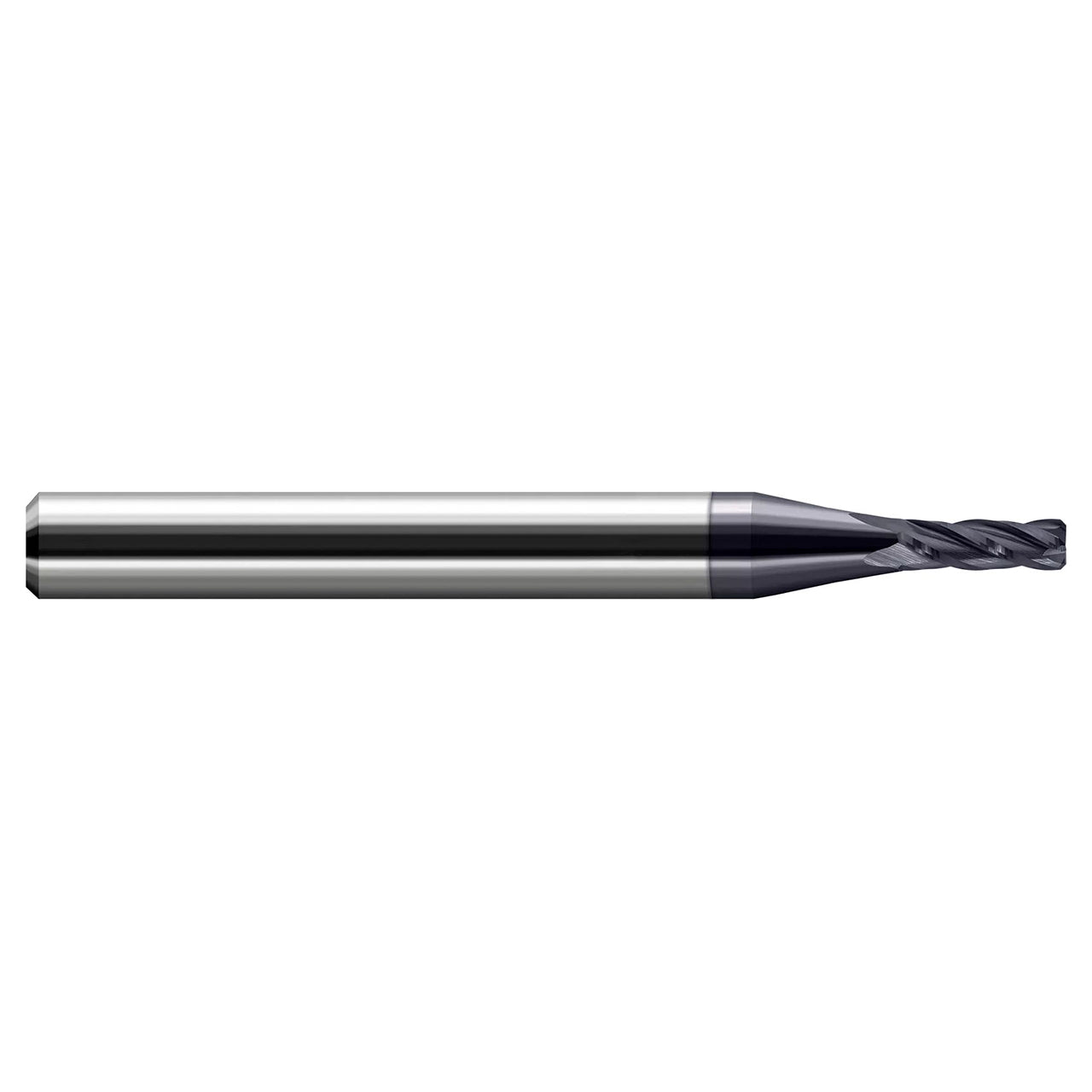

Harvey Tool 751108 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 0.3750" (3/8) LOC x 1.5000" (1-1/2) OAL 4 Flutes Uncoated Carbide Standard Corner Chamfer Miniature End Mills

Harvey Tool 751108 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 0.3750" (3/8) LOC x 1.5000" (1-1/2) OAL 4 Flutes Uncoated Carbide Standard Corner Chamfer Miniature End Mills

SKU: 25211322

$28.10 USD
$28.10 USD $28.10 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

Ver todos los detalles

Corner chamfer to protect the corners of the end mill, and create consistent heat and wear along the chamfer by distributing forces evenly.

  • Chamfered corner creates consistent heat and wear along chamfer by distributing forces evenly
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 751108
Cutter Diameter (Inch) 0.1250" (1/8)
Length of Cut (Inch) 0.3750" (3/8)
Overall Length (Inch) 1.5000" (1-1/2)
Chamfer Length (Inch) 0.0300"
Angle per Side 45
Included Angle 90
Flutes 4
LOC Multiple 3x
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
Center Cutting N
