Harvey Tool

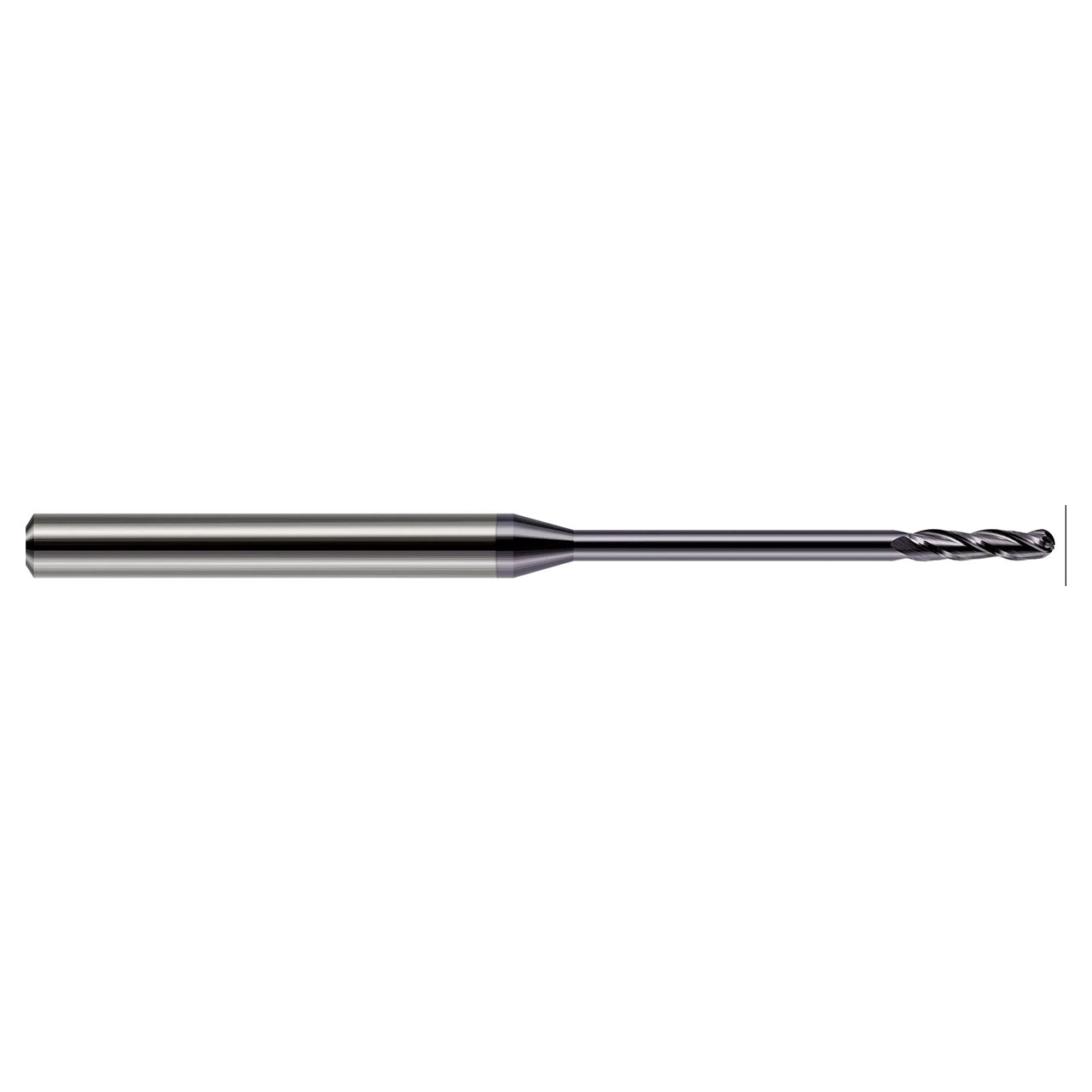

Harvey Tool 750493 | 0.0930" (3/32) Diameter x 0.1250" (1/8) Shank x 0.5000" (1/2) LOC x 2.5000" (2-1/2) OAL x 3 Flutes Uncoated Carbide Miniature Tapered Ball End Mill

Harvey Tool 750493 | 0.0930" (3/32) Diameter x 0.1250" (1/8) Shank x 0.5000" (1/2) LOC x 2.5000" (2-1/2) OAL x 3 Flutes Uncoated Carbide Miniature Tapered Ball End Mill

SKU: 25211317

$51.00 USD
$51.00 USD $51.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 14 Grams

Ver todos los detalles

Miniature End Mils is ideal for deep cavity and deep pocket milling. Further, its reduced neck diameter gemoetry works to avoid heeling

  • Long Length Design for Deep Cavities
  • Long Flutes for Deep Pocket Milling
  • CNC ground in the USA
  • Center cutting
  • Solid Carbide
  • 3 Flutes

Product Specifications
Tool Number 750493
Cutter Diameter (Inch) 0.0930" (3/32)
Neck Diameter (Inch) 0.0920"
Length of Cut (Inch) 0.5000" (1/2)
Overall Reach (Inch) 0.7500" (3/4)
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 3
LOC Multiple 5x
Reach Multiple 8x
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
