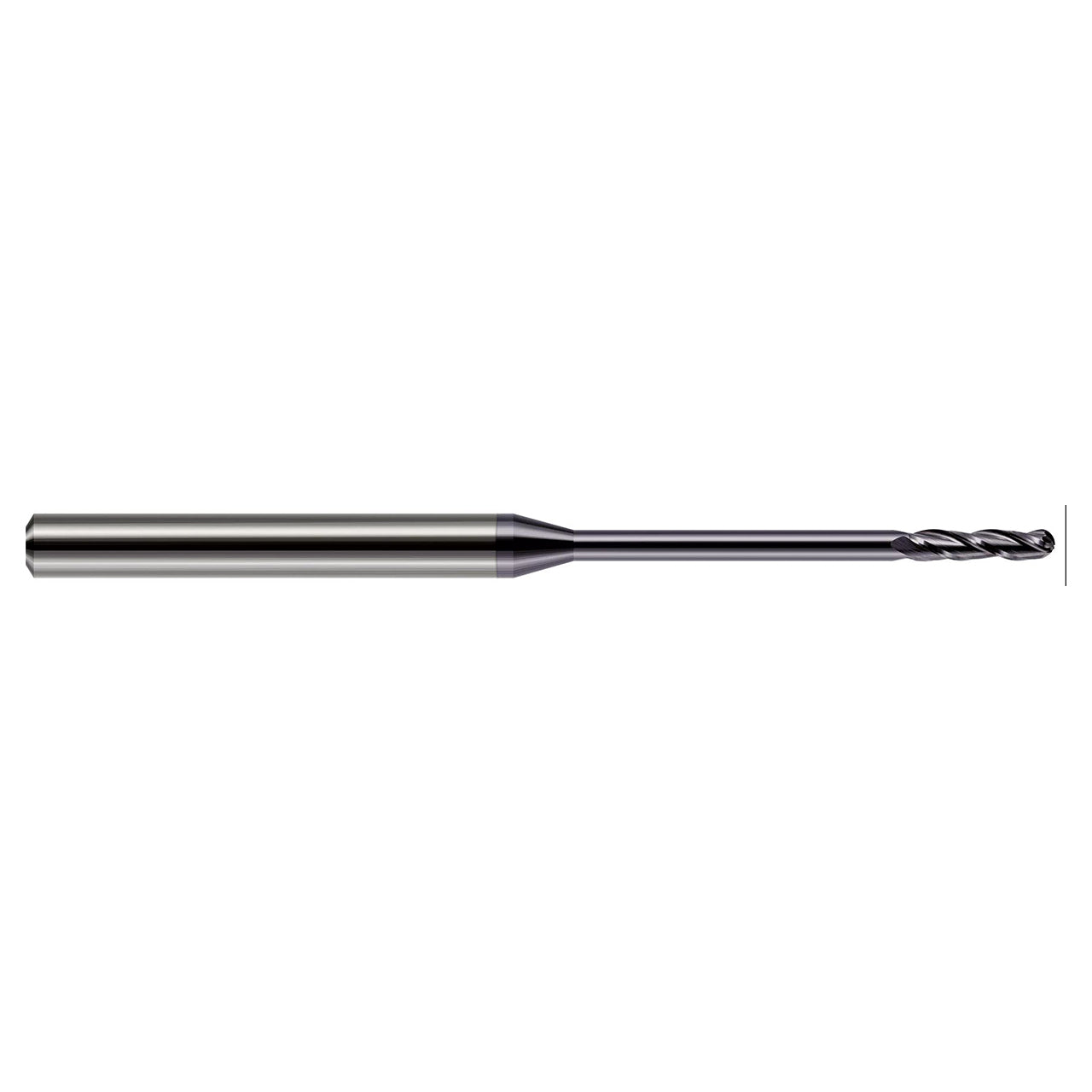

Harvey Tool 750431-C3 | 0.0310" (1/32) Diameter x 0.1250" (1/8) Shank x 0.1550" LOC x 2.5000" (2-1/2) OAL x 3 Flutes AlTiN Coated Carbide Miniature Tapered Ball End Mill

Harvey Tool 750431-C3 | 0.0310" (1/32) Diameter x 0.1250" (1/8) Shank x 0.1550" LOC x 2.5000" (2-1/2) OAL x 3 Flutes AlTiN Coated Carbide Miniature Tapered Ball End Mill

SKU: 25211314

$58.20 USD
$58.20 USD $58.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 14 Grams

Ver todos los detalles

Miniature End Mils is ideal for deep cavity and deep pocket milling. Further, its reduced neck diameter gemoetry works to avoid heeling

  • Long Length Design for Deep Cavities
  • Long Flutes for Deep Pocket Milling
  • CNC ground in the USA
  • Center cutting
  • Solid Carbide
  • 3 Flutes

Product Specifications
Tool Number 750431-C3
Cutter Diameter (Inch) 0.0310" (1/32)
Neck Diameter (Inch) 0.0300"
Length of Cut (Inch) 0.1550"
Overall Reach (Inch) 0.2500" (1/4)
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 3
LOC Multiple 5x
Reach Multiple 8x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C3
