Harvey Tool

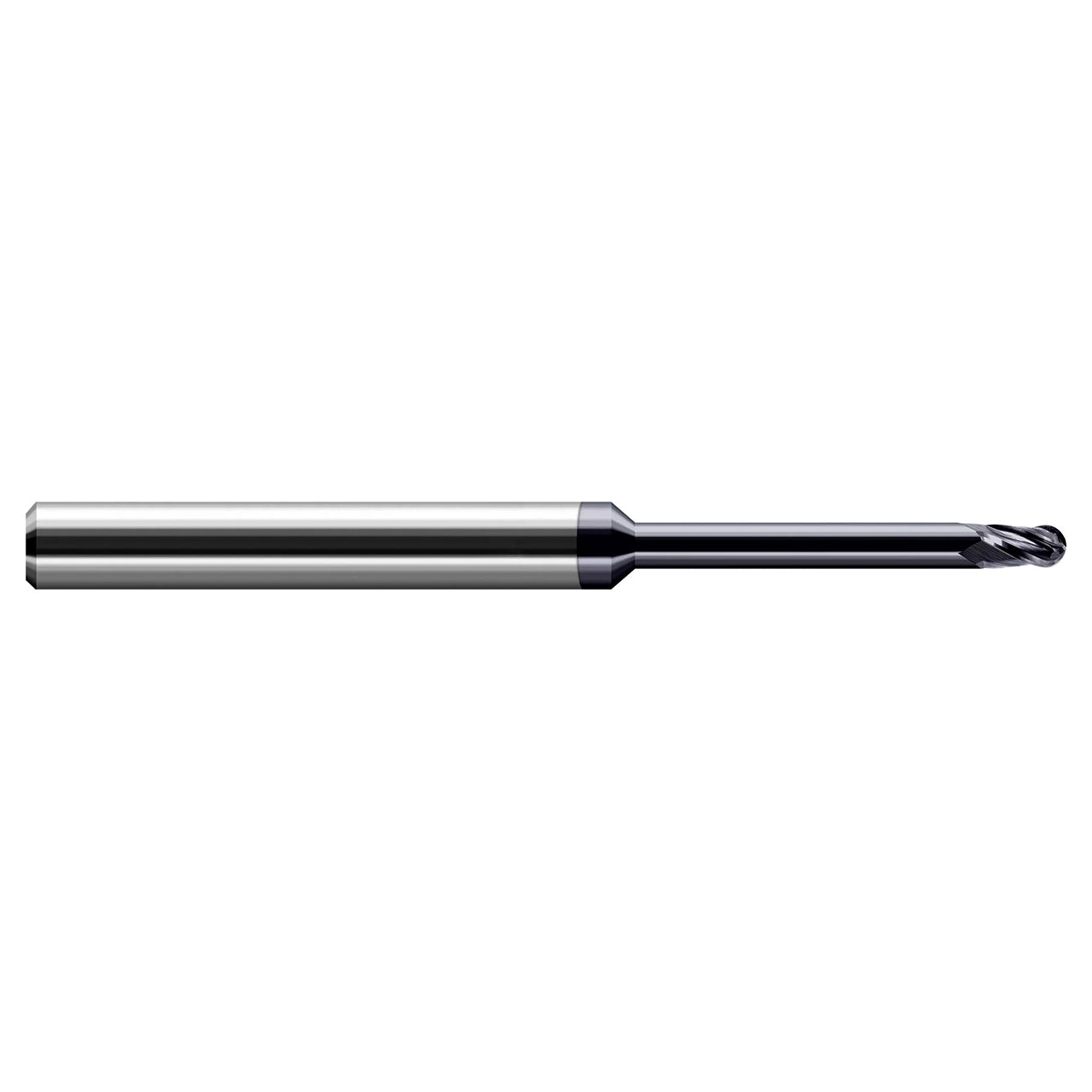

Harvey Tool 749245-C6 | 2.000 mm Diameter x 4.000 mm Shank x 3.000 mm LOC x 50.000 mm OAL 4 Flutes AlTiN Nano Coated Carbide High Temp Alloys Ball End Mill

Harvey Tool 749245-C6 | 2.000 mm Diameter x 4.000 mm Shank x 3.000 mm LOC x 50.000 mm OAL 4 Flutes AlTiN Nano Coated Carbide High Temp Alloys Ball End Mill

SKU: 25211301

$78.10 USD
$78.10 USD $78.10 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles

This offering of ball profile, long reach, stub flute end mills are optimized for titanium alloys, inconel, nickel alloys, and other high-temperature materials.

  • h6 shank tolerance for high precision tool holders
  • Reduced neck diameter to avoid heeling
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 749245-C6
Cutter Diameter (mm) 2.000 mm
Neck Diameter (mm) 1.960 mm
Length of Cut (mm) 3.000 mm
Overall Reach (mm) 12.000 mm
Overall Length (mm) 50.000 mm
Flutes 4
LOC Multiple 1.5x
Reach Multiple 6x
Shank Diameter (mm) 4.000 mm
Metric Y
Coating C6
