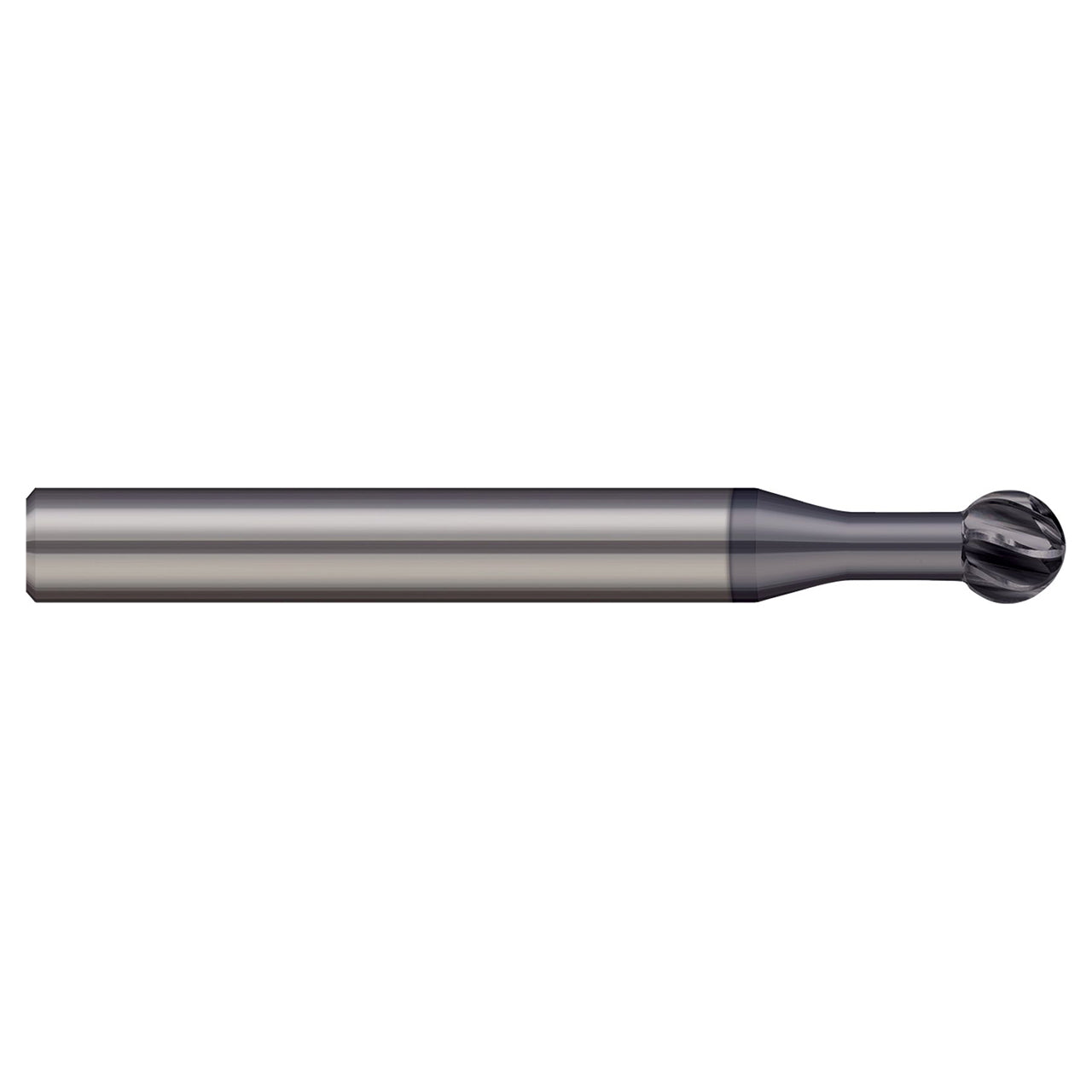

Undercutting End Mills - 270 Degree - For Hardened Steels are optimized for hardened steels.
- Designed for undercutting, deburring, and multi-axis machining
- Increased flute count for added strength and tool life
- CNC ground in the USA
- 270 Degree spherical ball
- Center cutting
- Solid carbide
Product Specifications
| Tool Number | 748912-C6 |
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Neck Diameter (Inch) | 0.1170" |
| Length of Cut (Inch) | 0.1600" |
| Neck Length (Inch) | 0.5000" (1/2) |
| Overall Reach (Inch) | 0.6600" |
| Overall Length (Inch) | 2.0000" (2) |
| Radius (Inch) | 0.0938" |
| Wrap Angle | 270 |
| Flutes | 6 |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating | C6 |
