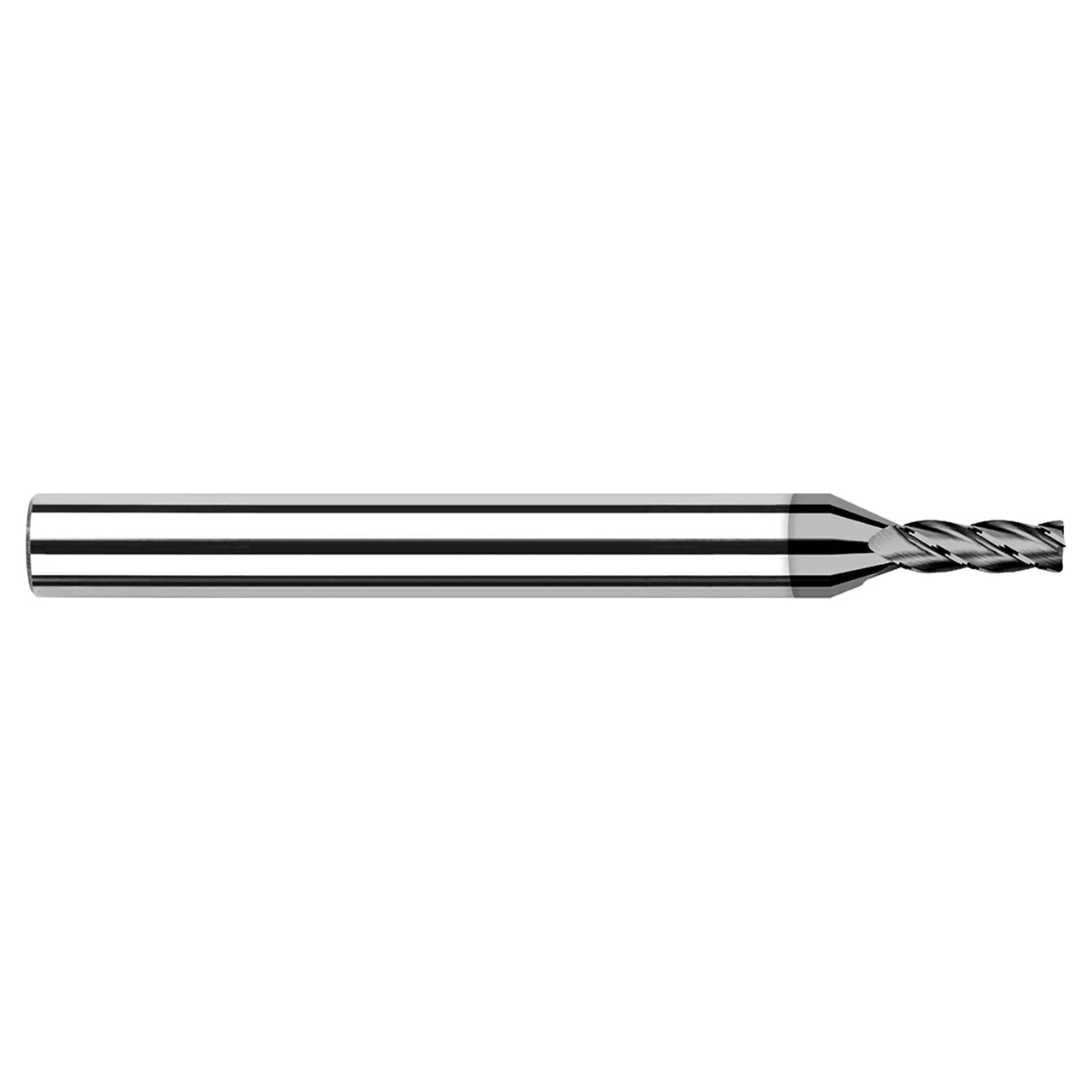

Harvey Tool 747716 | 0.2500" (1/4) Diameter x 0.2500" (1/4) Shank x 0.3750" (3/8) LOC x 2.5000" (2-1/2) OAL x 0.0300" Radius 4 Flutes CVD Diamond Coated Corner Radius End Mill

Harvey Tool 747716 | 0.2500" (1/4) Diameter x 0.2500" (1/4) Shank x 0.3750" (3/8) LOC x 2.5000" (2-1/2) OAL x 0.0300" Radius 4 Flutes CVD Diamond Coated Corner Radius End Mill

SKU: 25211273

$188.10 USD
$188.10 USD $188.10 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles

Harvey Tool's Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius features a true crystalline CVD diamond on solid carbide substrate.

  • Ideal for machining graphite and composites, green carbide, and green ceramics
  • True crystalline CVD diamond on solid carbide substrate
  • h6 shank tolerance for high precision tool holders
  • Maximum abrasion resistance increases tool life
  • CNC ground in the USA
  • Center cutting
  • 4 flutes

Product Specifications
Tool Number 747716
Cutter Diameter (Inch) 0.2500" (1/4)
Length of Cut (Inch) 0.3750" (3/8)
Overall Length (Inch) 2.5000" (2-1/2)
Corner Radius (Inch) 0.0300"
Flutes 4
LOC Multiple 1.5x
Shank Diameter (Inch) 0.2500" (1/4)
Coating C5
