Harvey Tool

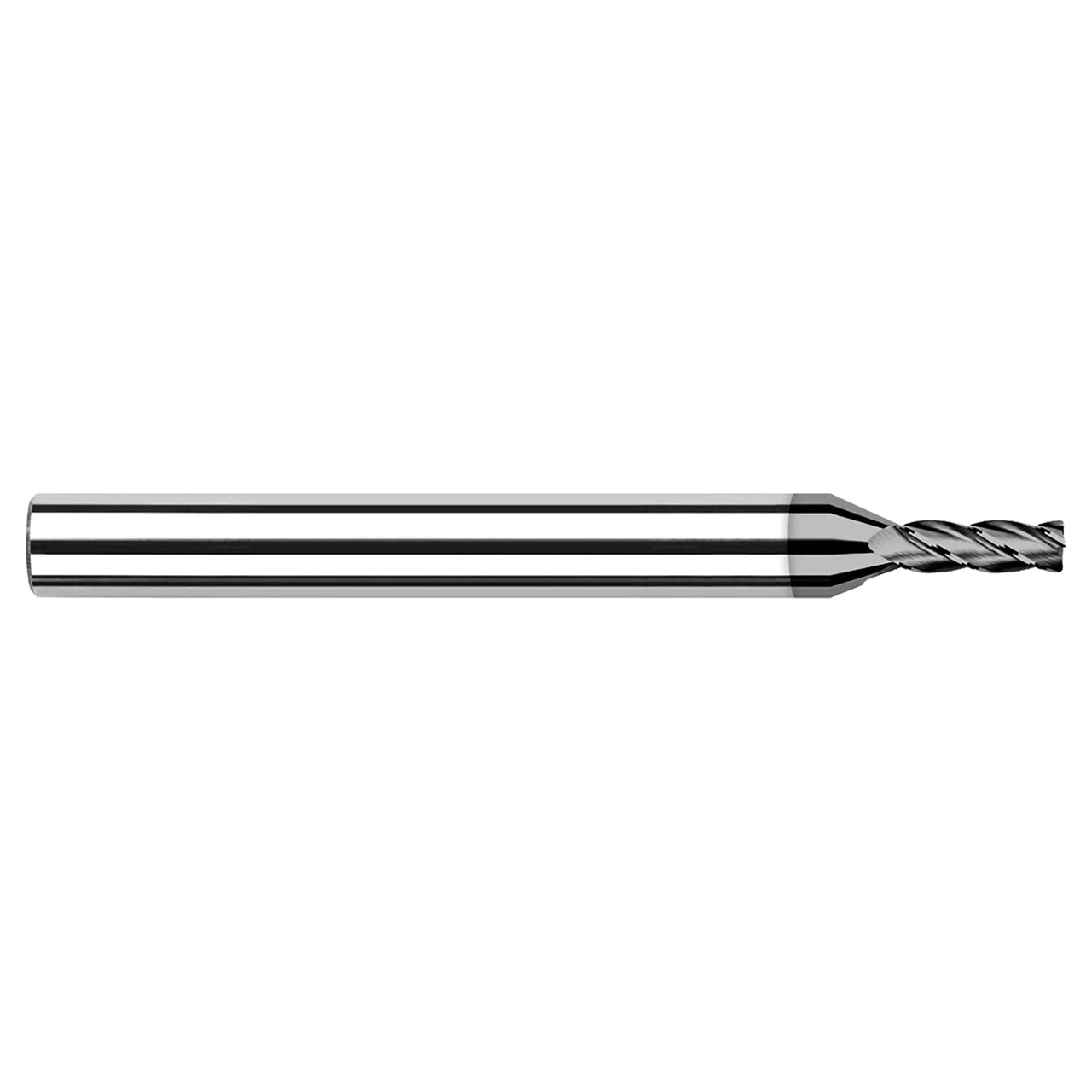

Harvey Tool 746831 | 0.0310" (1/32) Diameter x 0.1250" (1/8) Shank x 0.0470" (3/64) LOC x 1.5000" (1-1/2) OAL x 0.0050" Radius 4 Flutes CVD Diamond Coated Corner Radius End Mill

Harvey Tool 746831 | 0.0310" (1/32) Diameter x 0.1250" (1/8) Shank x 0.0470" (3/64) LOC x 1.5000" (1-1/2) OAL x 0.0050" Radius 4 Flutes CVD Diamond Coated Corner Radius End Mill

SKU: 25211253

$116.60 USD
$116.60 USD $116.60 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

Ver todos los detalles

Harvey Tool's Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius features a true crystalline CVD diamond on solid carbide substrate.

  • Ideal for machining graphite and composites, green carbide, and green ceramics
  • True crystalline CVD diamond on solid carbide substrate
  • h6 shank tolerance for high precision tool holders
  • Maximum abrasion resistance increases tool life
  • CNC ground in the USA
  • Center cutting
  • 4 flutes

Product Specifications
Tool Number 746831
Cutter Diameter (Inch) 0.0310" (1/32)
Length of Cut (Inch) 0.0470" (3/64)
Overall Length (Inch) 1.5000" (1-1/2)
Corner Radius (Inch) 0.0050"
Flutes 4
LOC Multiple 1.5x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C5
