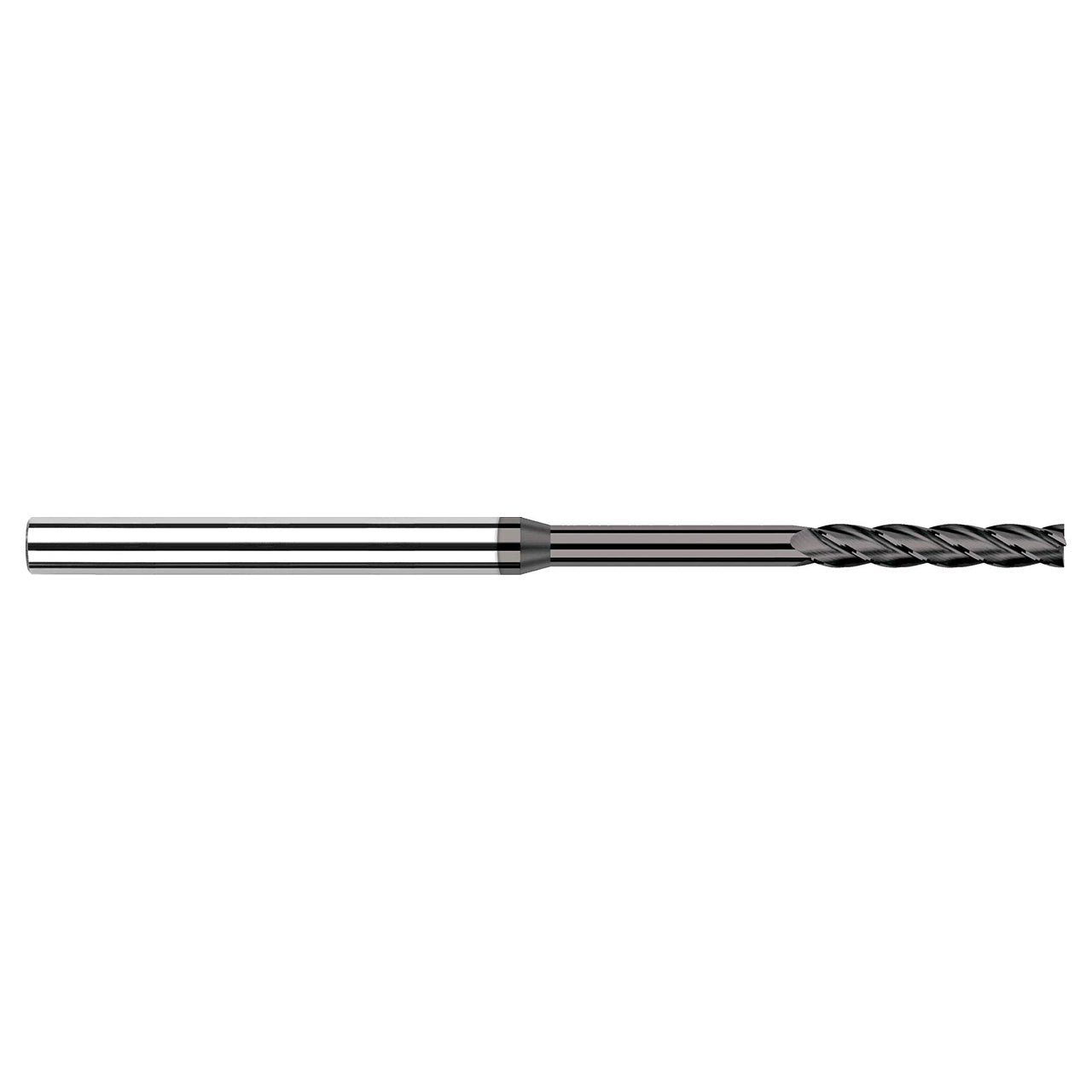

This CVD diamond coated End Mill, ideal for machining graphite and composites, green carbide, and green ceramics, is ideal for machining deep within a part.
- Ideal for machining graphite and composites, green carbide, and green ceramics
- True crystalline CVD diamond on solid carbide substrate
- Reduced neck for clearance and maximum rigidity
- h6 shank tolerance for high precision tool holders
- Maximum abrasion resistance increases tool life
- CNC ground in the USA
- Center cutting
- 4 flutes
Product Specifications
| Tool Number | 746293 |
| Cutter Diameter (Inch) | 0.0930" (3/32) |
| Neck Diameter (Inch) | 0.0900" |
| Length of Cut (Inch) | 0.5000" (1/2) |
| Overall Reach (Inch) | 0.7500" (3/4) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Flutes | 4 |
| LOC Multiple | 5x |
| Reach Multiple | 8x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | C5 |
