Harvey Tool

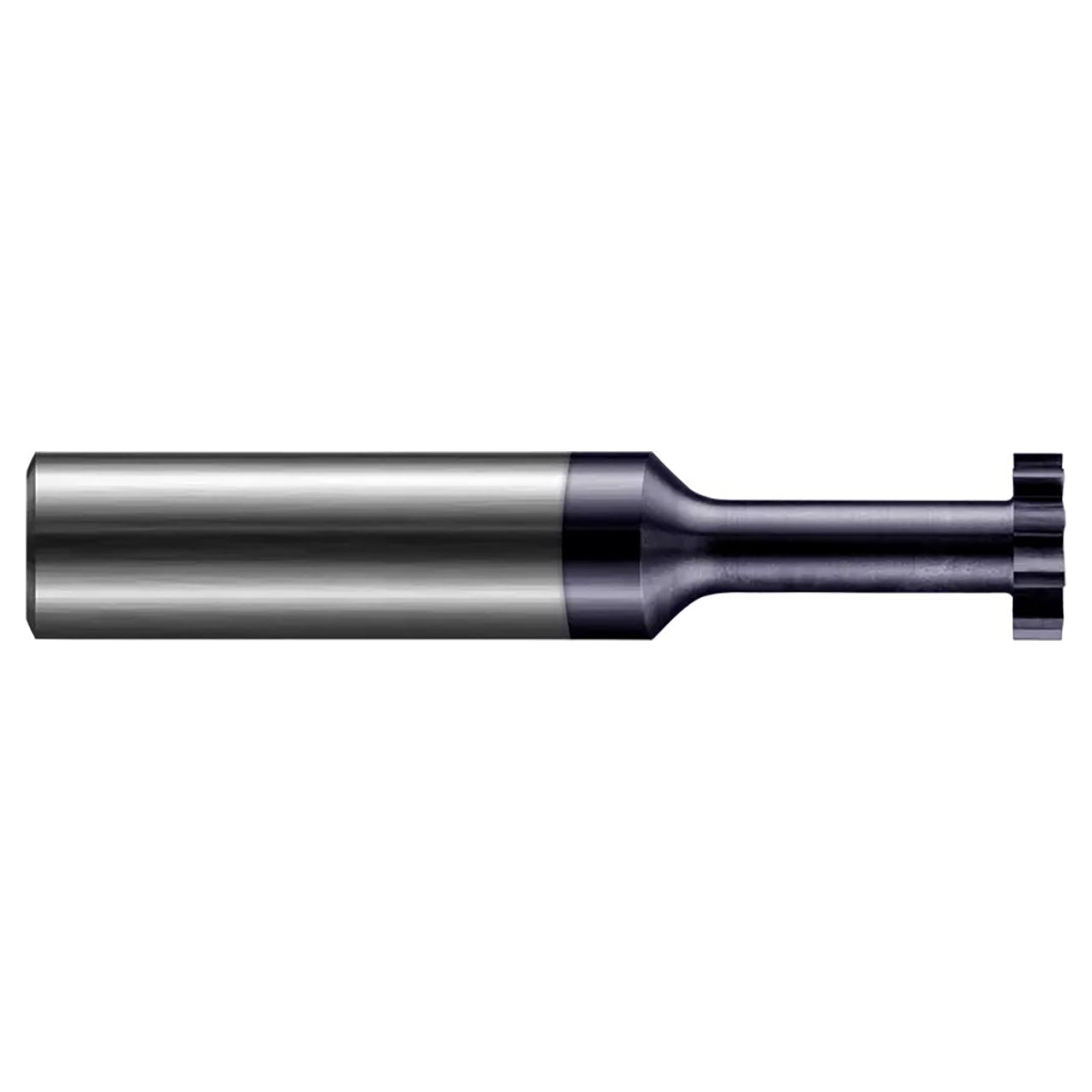

Harvey Tool 744760-C6 | 0.5000" (1/2) Diameter x 0.1250" (1/8) Width 0.5000" (1/2) Shank AlTiN Nano Coated Carbide Hardened Steels Keyseat Cutter

Harvey Tool 744760-C6 | 0.5000" (1/2) Diameter x 0.1250" (1/8) Width 0.5000" (1/2) Shank AlTiN Nano Coated Carbide Hardened Steels Keyseat Cutter

SKU: 25211219

$161.00 USD
$161.00 USD $161.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 113 Grams

Ver todos los detalles
  • Both sides of cutter are dished for clearance
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 744760-C6
Cutter Diameter (Inch) 0.5000" (1/2)
Neck Diameter (Inch) 0.2500" (1/4)
Cutter Width (Inch) 0.1250" (1/8)
Neck Length (Inch) 0.5000" (1/2)
Overall Length (Inch) 3.0000" (3)
Radial Depth of Cut (Inch) 0.1050"
Flutes 10
Reach Multiple 1x
Type I
Shank Diameter (Inch) 0.5000" (1/2)
Coating C6
