Harvey Tool

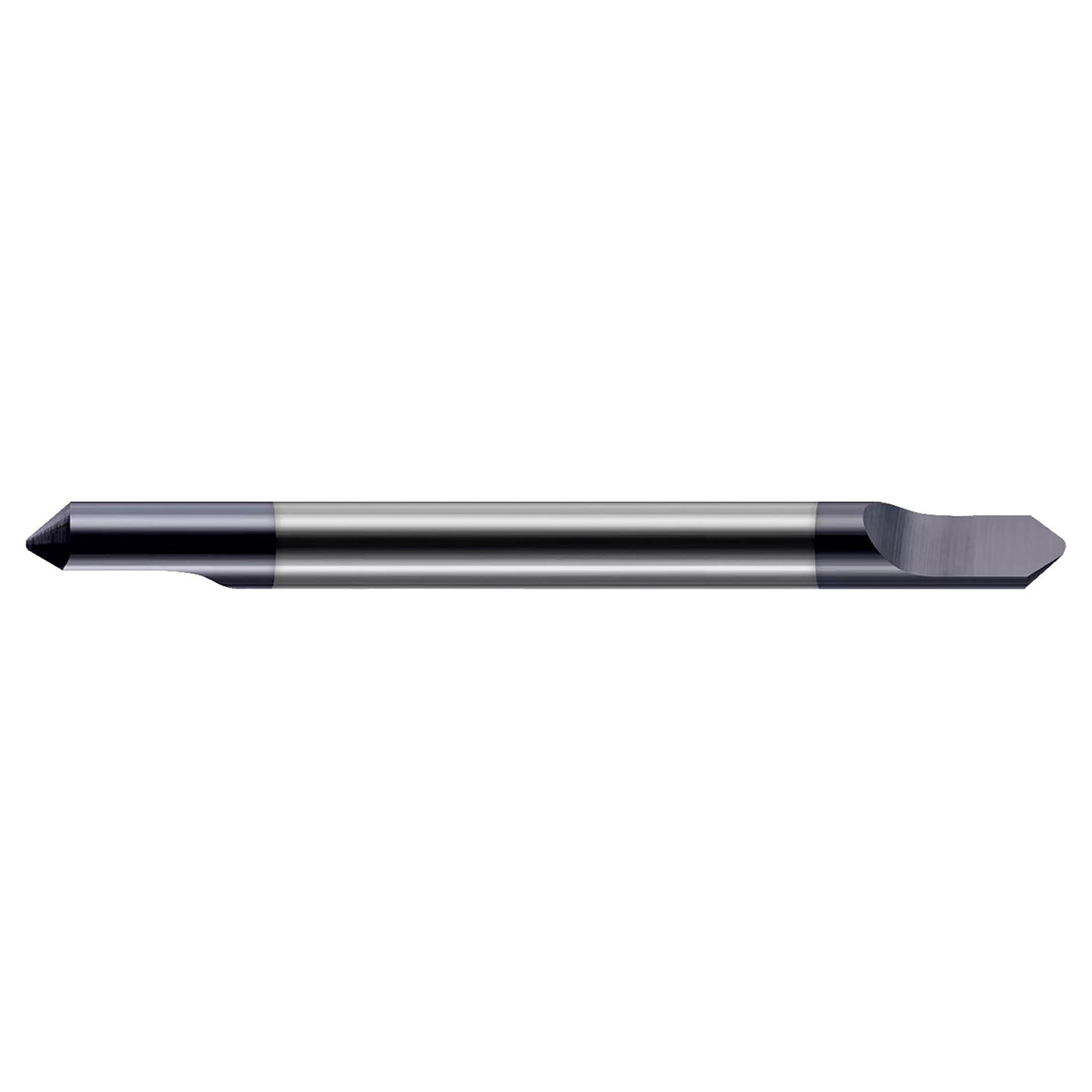

Harvey Tool 744508 | 30 Degree x 0.1900" LOC x 0.1250" (1/8) Shank x Uncoated Carbide Double-Ended Tip Radius Engraving Cutter

Harvey Tool 744508 | 30 Degree x 0.1900" LOC x 0.1250" (1/8) Shank x Uncoated Carbide Double-Ended Tip Radius Engraving Cutter

SKU: 25211215

Precio habitual $38.90 USD
Precio habitual $38.90 USD Precio de oferta $38.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

23 en existencias

Free Shipping on Orders Over $75

Ver todos los detalles
  • Radius on tip creates radius in bottom of groove and improves strength
  • Relieved for right hand milling
  • CNC ground in the USA
  • Half-round drill style
  • Double-ended
  • Solid carbide

Product Specifications
Tool Number 744508
Length of Cut (Inch) 0.1900"
Overall Length (Inch) 2.0000" (2)
Radius (Inch) 0.0150" (1/64)
Angle per Side 15
Included Angle 30
Flutes 1
Type II
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
