Harvey Tool

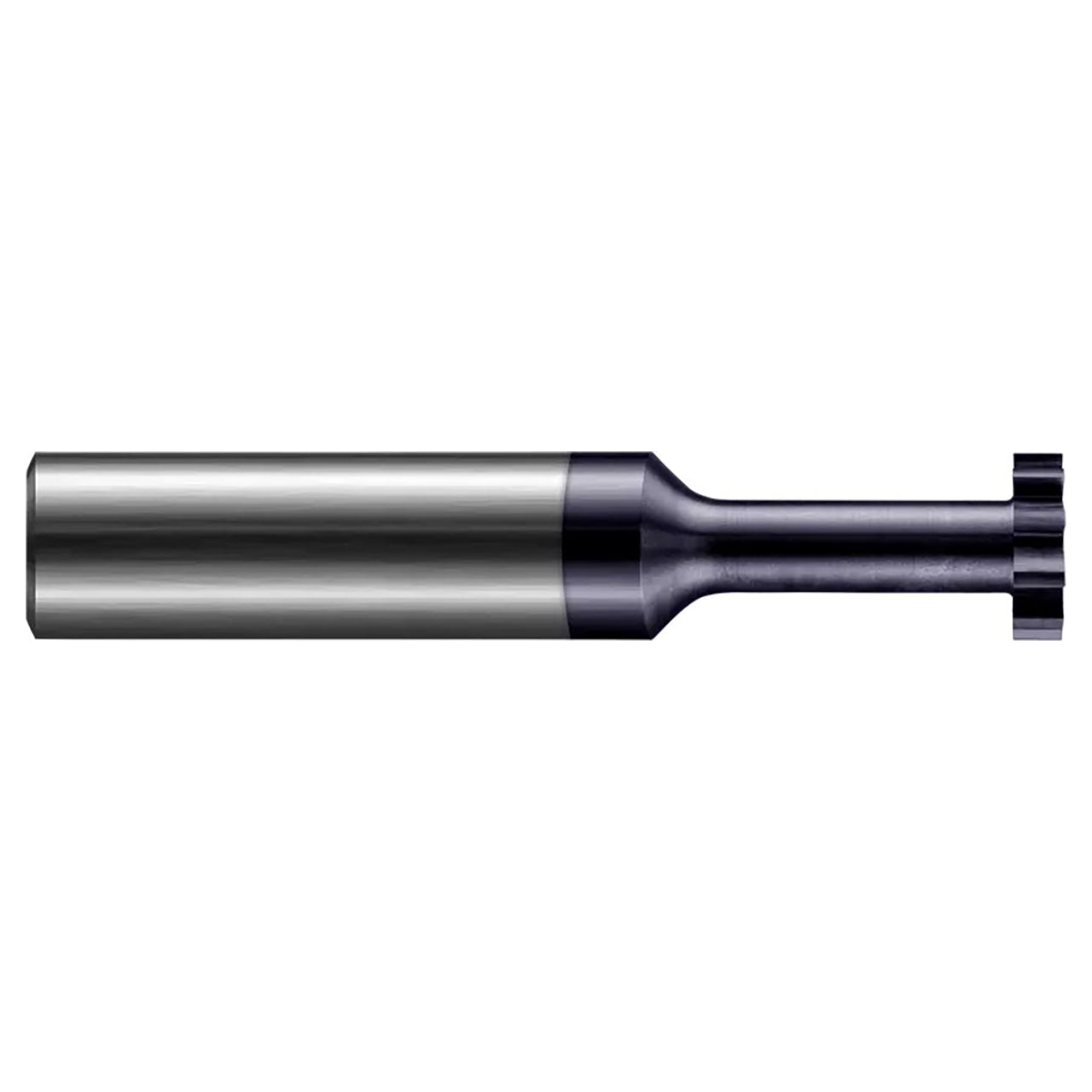

Harvey Tool 744360-C6 | 0.6250" (5/8) Diameter x 0.1250" (1/8) Width 0.6250" (5/8) Shank AlTiN Nano Coated Carbide Hardened Steels Keyseat Cutter

Harvey Tool 744360-C6 | 0.6250" (5/8) Diameter x 0.1250" (1/8) Width 0.6250" (5/8) Shank AlTiN Nano Coated Carbide Hardened Steels Keyseat Cutter

SKU: 25232640

$244.80 USD
$244.80 USD $244.80 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 186 Grams

Ver todos los detalles
  • Both sides of cutter are dished for clearance
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 744360-C6
Cutter Diameter (Inch) 0.6250" (5/8)
Neck Diameter (Inch) 0.3120" (5/16)
Cutter Width (Inch) 0.1250" (1/8)
Neck Length (Inch) 1.0000" (1)
Overall Length (Inch) 3.5000" (3-1/2)
Radial Depth of Cut (Inch) 0.1370"
Flutes 10
Reach Multiple 1.5x
Type I
Shank Diameter (Inch) 0.6250" (5/8)
Coating C6
