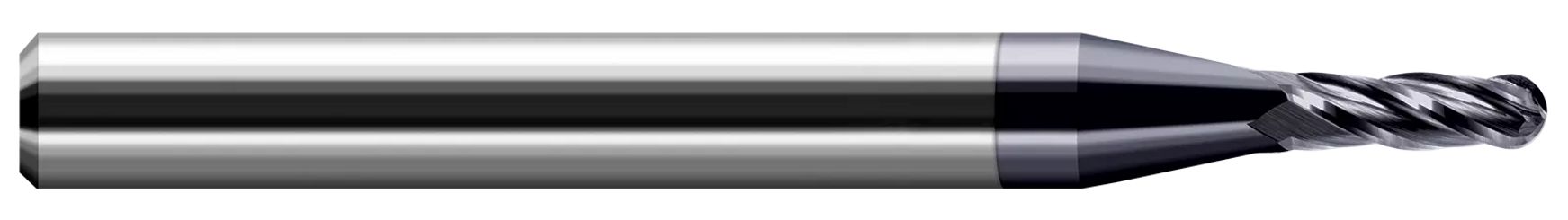

Offered in uncoated, AlTiN Nano coated, and Amorphous Diamond coated styles, Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling, and feature a 2 Degree tapered neck design to minimize deflection and maximize wall clearance.
- Designed for deep cavity profiling
- 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
- Length of cut = 1-½ x diameter
- Neck behind length of cut is reduced for 1x diameter
- h6 shank tolerance for high precision tool holders
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0050" |
| Length of Cut (Inch) | 0.0150" (1/64) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 4 |
| LOC Multiple | 3x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C4 |
