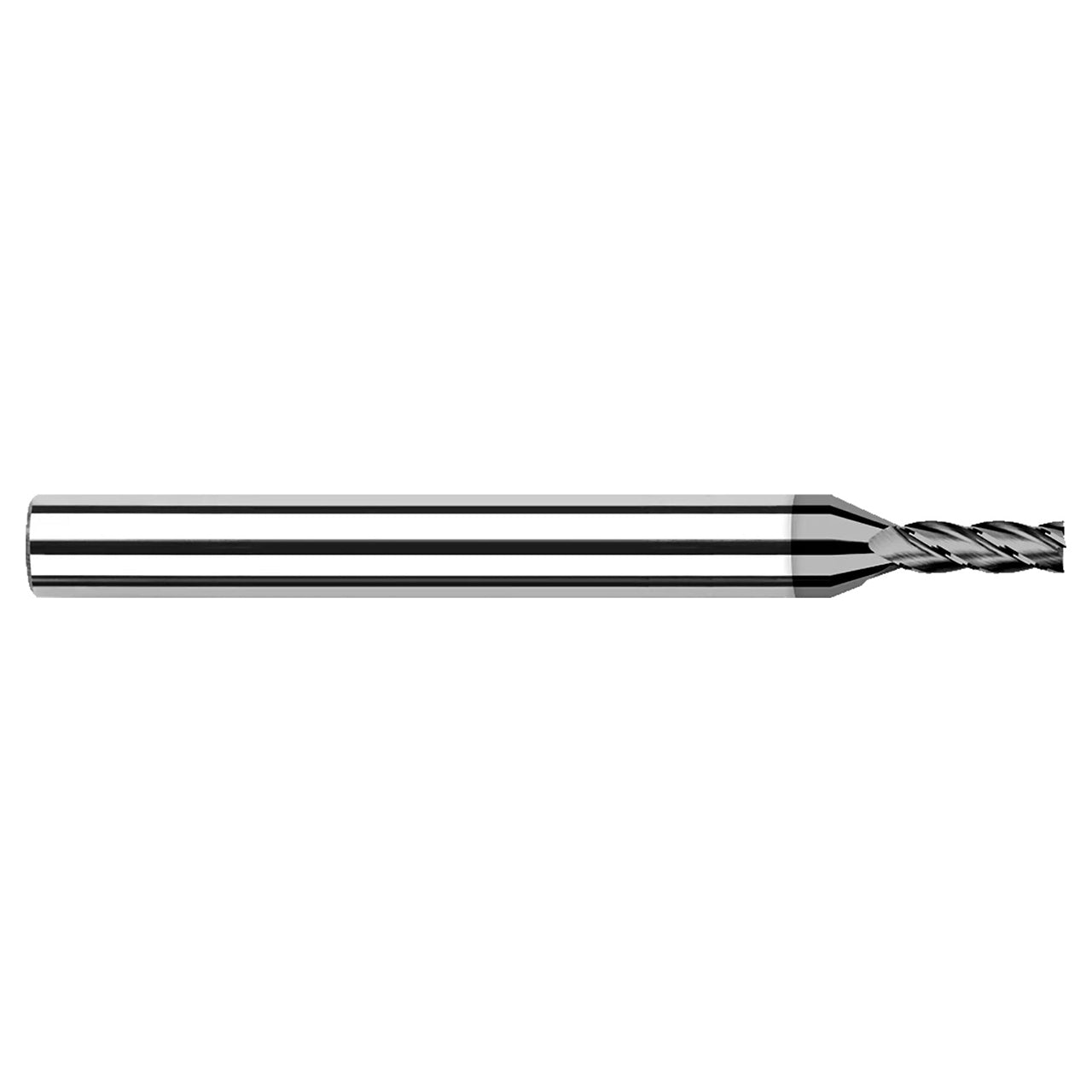

Harvey Tool 741924 | 0.3750" (3/8) Diameter 0.3750" (3/8) Shank x 1.1250" (1-1/8) LOC x 2.5000" (2-1/2) OAL 4 Flutes CVD Diamond (4 µm) Square End Mill

Harvey Tool 741924 | 0.3750" (3/8) Diameter 0.3750" (3/8) Shank x 1.1250" (1-1/8) LOC x 2.5000" (2-1/2) OAL 4 Flutes CVD Diamond (4 µm) Square End Mill

SKU: 25232331

$192.20 USD
$192.20 USD $192.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 227 Grams

Ver todos los detalles

Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Square features 4 flutes and true crystalline CVD diamond on solid carbide substrate.

  • Ideal for machining graphite and composites, green carbide, and green ceramics
  • True crystalline CVD diamond on solid carbide substrate
  • h6 shank tolerance for high precision tool holders
  • Maximum abrasion resistance increases tool life
  • CNC ground in the USA
  • Center cutting
  • 4 flutes

Product Specifications
Tool Number 741924
Cutter Diameter (Inch) 0.3750" (3/8)
Length of Cut (Inch) 1.1250" (1-1/8)
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 4
LOC Multiple 3x
Shank Diameter (Inch) 0.3750" (3/8)
Coating C9
