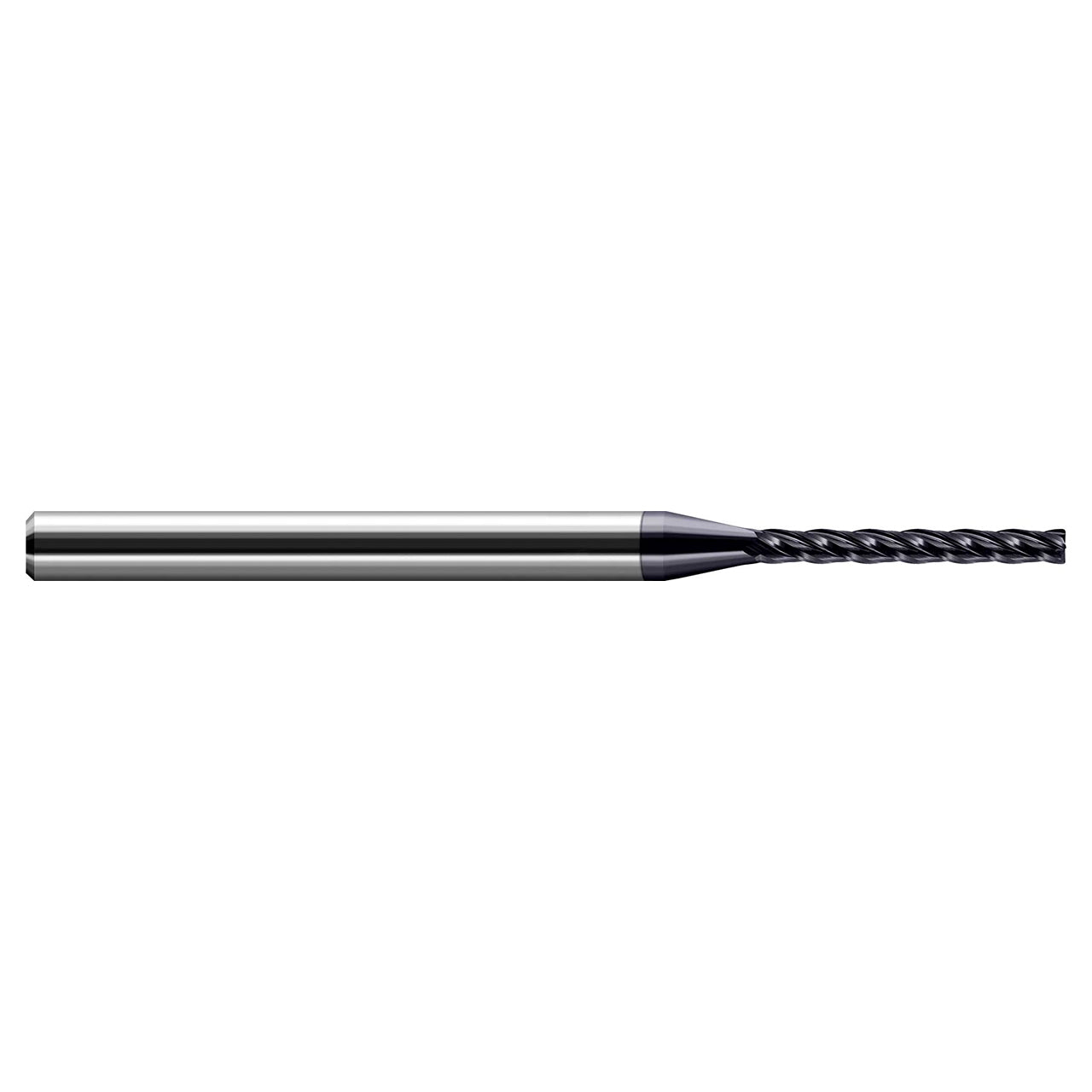

The long flute style of Miniature End Mills - Corner Radius - Long Flute, a vast Harvey Tool offering of center cutting, solid carbide end mills that are CNC ground in the USA, optimizes this tool for deep cavity and deep pocket milling applications.
- Long flute and long shank design for deep cavities
- CNC ground in the USA
- Mills deep pockets
- Center cutting
- Solid Carbide
- 4 flutes
Product Specifications
| Tool Number | 739710-C3 |
| Cutter Diameter (Inch) | 0.1562" (5/32) |
| Length of Cut (Inch) | 1.2500" (1-1/4) |
| Overall Length (Inch) | 3.0000" (3) |
| Corner Radius (Inch) | 0.0100" |
| Flutes | 4 |
| LOC Multiple | 8x |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating | C3 |
