Harvey Tool

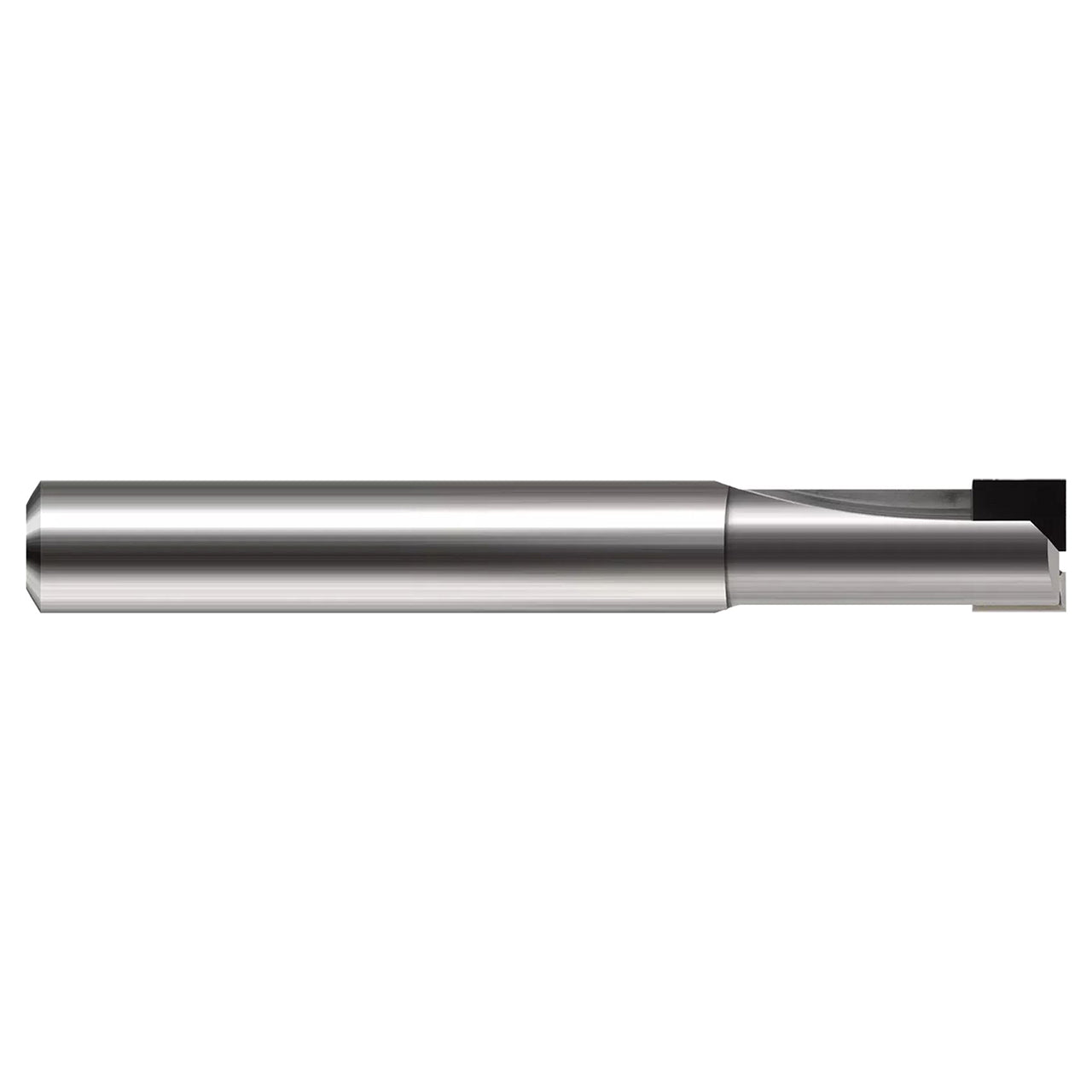

Harvey Tool 739216 | 0.2500" (1/4) Diameter x 0.2500" (1/4) Shank x 0.5000" (1/2) LOC x 2.5000" (2-1/2) OAL 2 Flutes PCD Diamond Coated Square End Mill

Harvey Tool 739216 | 0.2500" (1/4) Diameter x 0.2500" (1/4) Shank x 0.5000" (1/2) LOC x 2.5000" (2-1/2) OAL 2 Flutes PCD Diamond Coated Square End Mill

SKU: 25232236

$457.90 USD
$457.90 USD $457.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles

Enjoy significantly improved tool life on this square profile end mill for non-ferrous materials, a result of the PCD diamond brazed onto its solid carbide body.

  • PCD diamond brazed on solid carbide body allows for significant tool life improvement over carbide
  • Center cutting

Product Specifications
Tool Number 739216
Cutter Diameter (Inch) 0.2500" (1/4)
Neck Diameter (Inch) 0.2350"
Length of Cut (Inch) 0.5000" (1/2)
Overall Reach (Inch) 1.0000" (1)
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 2
Shank Diameter (Inch) 0.2500" (1/4)
Coating PCD
