Harvey Tool

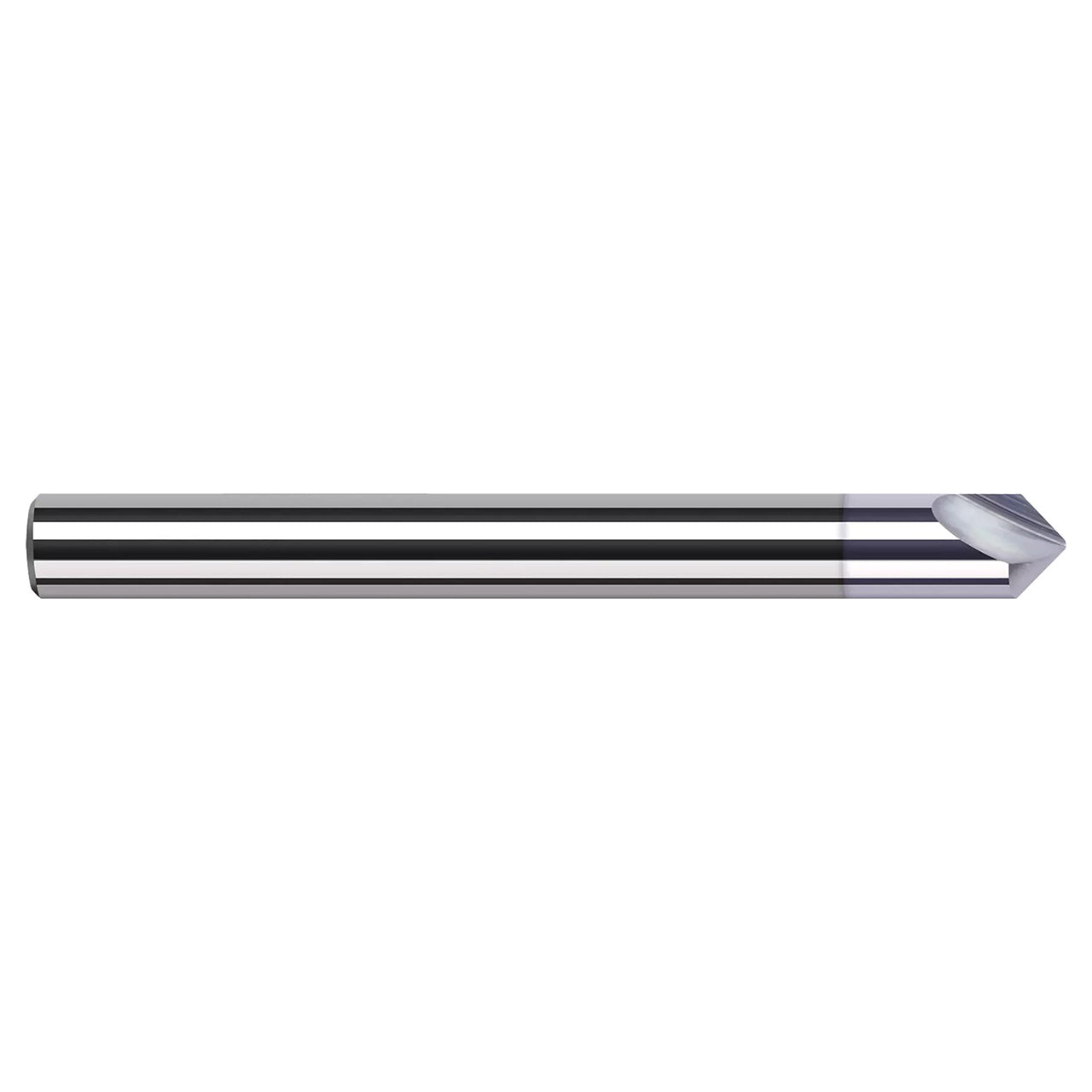

Harvey Tool 738130 | 60 Degree x 0.0930" (3/32) LOC x 0.1250" (1/8) Shank x Uncoated Carbide Tip Radius Marking Engraving Cutter

Harvey Tool 738130 | 60 Degree x 0.0930" (3/32) LOC x 0.1250" (1/8) Shank x Uncoated Carbide Tip Radius Marking Engraving Cutter

SKU: 25232229

$27.30 USD
$27.30 USD $27.30 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

Ver todos los detalles
  • Radius on tip creates radius in bottom of groove and improves strength
  • Relieved for right hand milling
  • CNC ground in the USA
  • Half-round drill style
  • Double-ended
  • Solid carbide

Product Specifications
Tool Number 738130
Length of Cut (Inch) 0.0930" (3/32)
Overall Length (Inch) 1.5000" (1-1/2)
Radius (Inch) 0.0150" (1/64)
Angle per Side 30
Included Angle 60
Flutes 2
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
