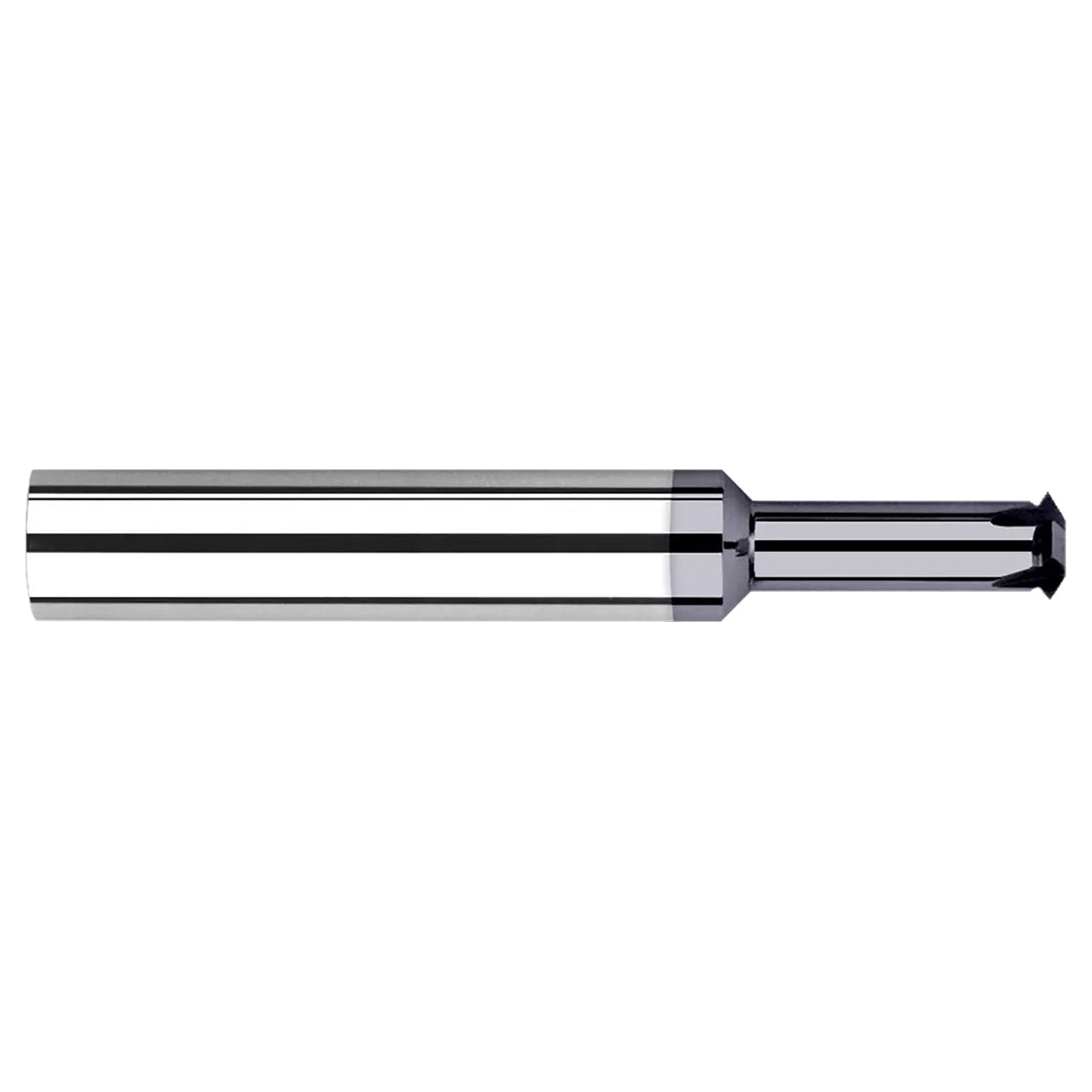

Harvey Tool 737619-C3 | 1.500 mm Diameter x 0.346 mm LOC x 3.000 mm Shank x 2 Flute AlTiN Coated Carbide Multi-Form Thread Milling Cutter

Harvey Tool 737619-C3 | 1.500 mm Diameter x 0.346 mm LOC x 3.000 mm Shank x 2 Flute AlTiN Coated Carbide Multi-Form Thread Milling Cutter

SKU: 25232502

$102.30 USD
$102.30 USD $102.30 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

Ver todos los detalles

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.

  • Single thread form – can mill multiple pitches
  • Tip of included angle ground to a point
  • Mills right hand and left hand threads
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 737619-C3
Cutter Diameter (Inch) 1.500 mm
Neck Diameter (Inch) 0.900 mm
Length of Cut (Inch) 0.346 mm
Overall Length (Inch) 38.000 mm
Max Depth of Thread (Inch) 6.300 mm
Angle per Side 30
Included Angle 60
Flutes 2
Reach Multiple 7x
Size M2
Shank Diameter (Inch) 3.000 mm
Metric Y
Coating C3
