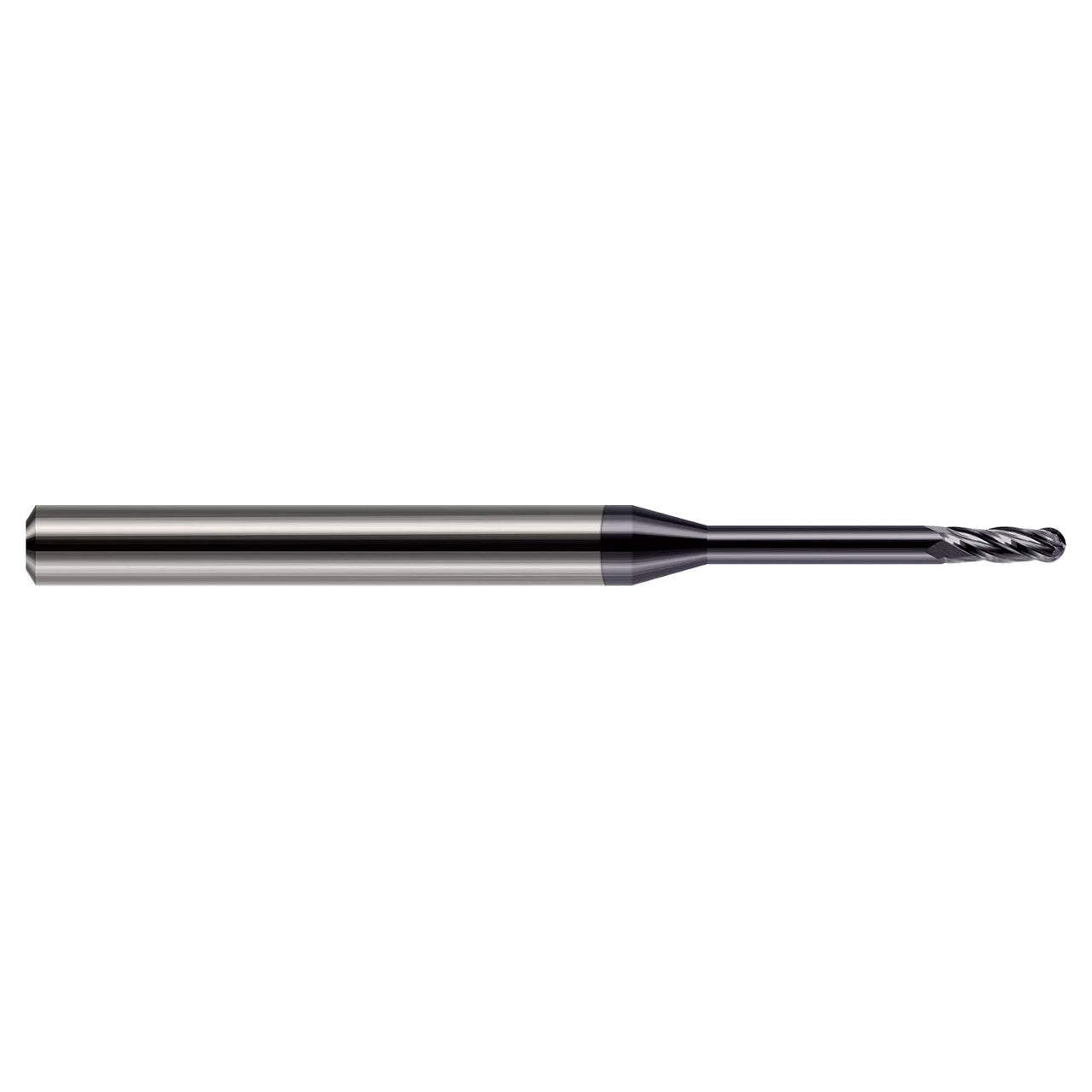

The reduced neck diameter featured in this line of Harvey Tool miniature end mills - ball - long reach, standard flute product helps to avoid heeling.
Features- Length of cut = 3 x diameter
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 734593-C3 |
| Cutter Diameter (Inch) | 0.0930" (3/32) |
| Neck Diameter (Inch) | 0.0915" |
| Length of Cut (Inch) | 0.2790" |
| Overall Reach (Inch) | 0.6700" |
| Overall Length (Inch) | 3.0000" (3) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Number of Flutes | 4 |
| LOC Multiple | (3x) |
| Reach Multiple | (7x) |
| Coating | C3 |
| Profile | Ball |
