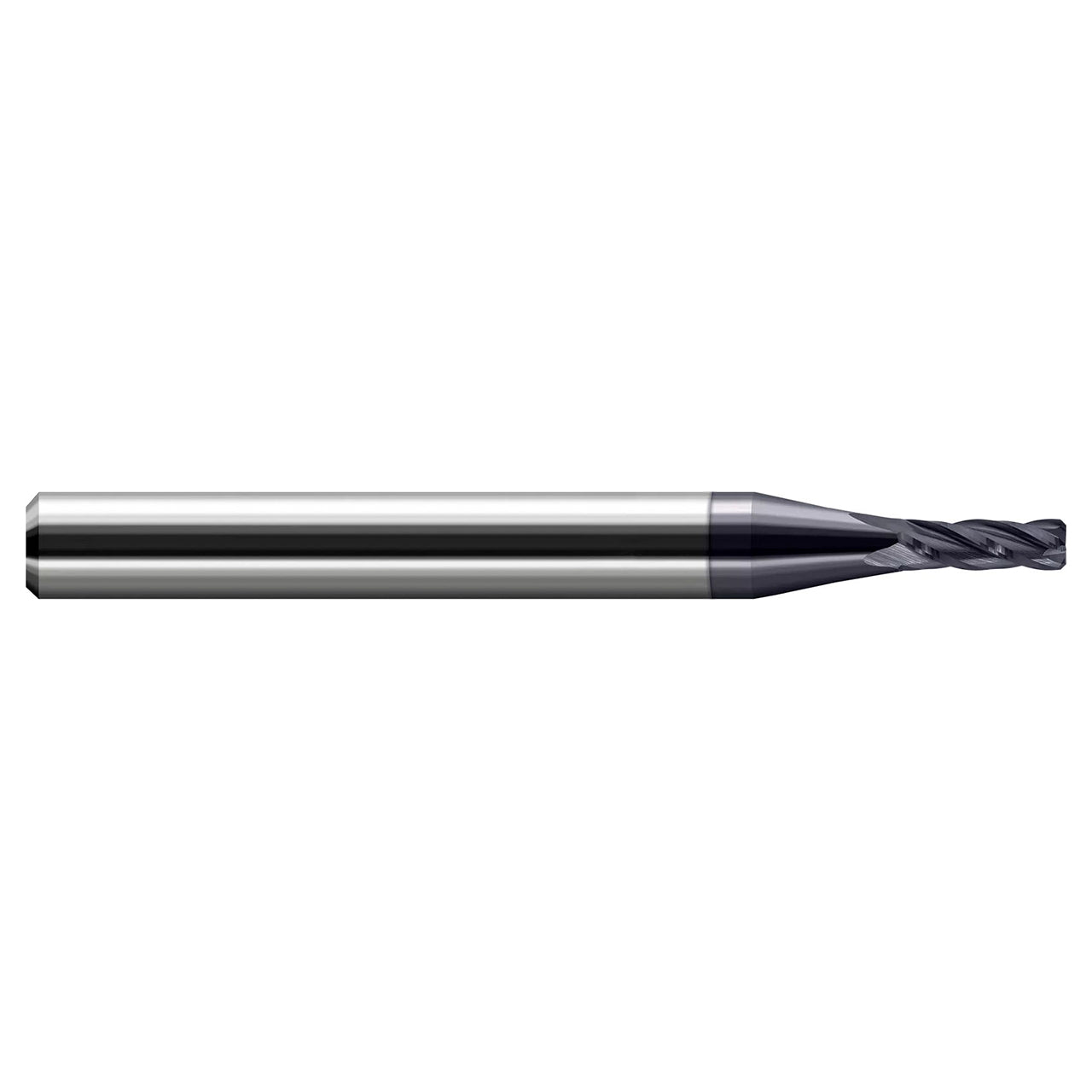

Harvey Tool corner chamfer end mills are CNC ground in the USA from solid carbide, feature a 45 Degree corner chamfer to protect the corners of the end mill, and create consistent heat and wear along the chamfer by distributing forces evenly.
Features- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 727112 |
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Length of Cut (Inch) | 0.2850" |
| Overall Length (Inch) | 2.0000" (2) |
| Chamfer Length (Inch) | 0.0200" |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Angle per Side | 45 Degree |
| Number of Flutes | 4 |
| LOC Multiple | (1.5x) |
| Coating | Uncoated |
| Center Cutting | No |
| Profile | Corner Chamfer |
