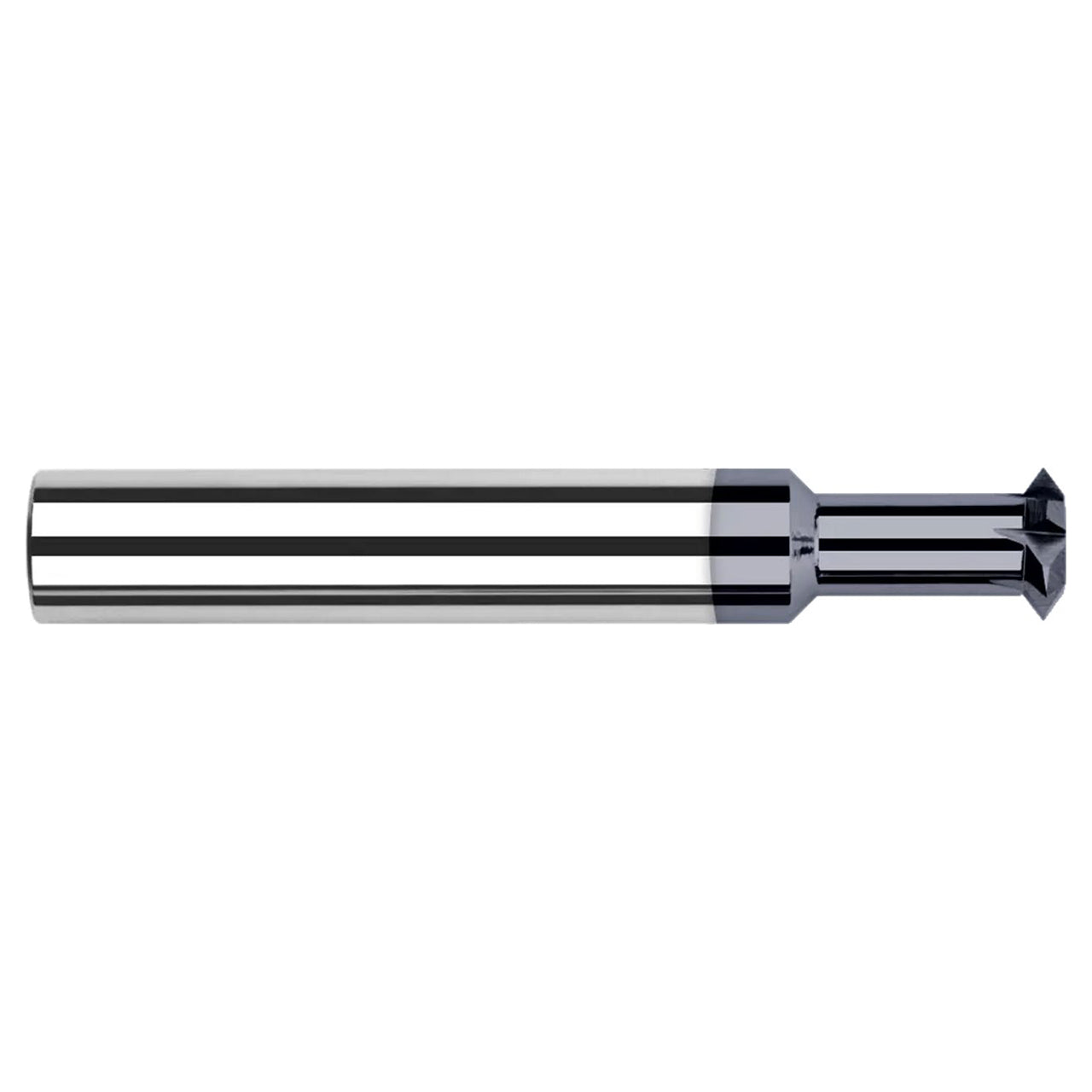

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations
- Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
- Reduced neck for long reach machining
- Tip of included angle ground to a point
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 71756 |
| Cutter Diameter (Inch) | 0.1562" (5/32) |
| Neck Diameter (Inch) | 0.0780" (5/64) |
| Cutter Width (Inch) | 0.0780" (5/64) |
| Neck Length (Inch) | 0.8750" (7/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Angle per Side | 45 |
| Included Angle | 90 |
| Flutes | 4 |
| Type | I |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating | Uncoated |
