Product Specifications
| Manufacturer Part Number | 716360 |
| Cutter Diameter (Decimal Inch) | 0.140" |
| Cutter Diameter (Inch) | 9/64" |
| Neck Diameter (Decimal Inch) | 0.070" |
| Cutter Width (Decimal Inch) | 0.125" |
| Cutter Width (Inch) | 1/8" |
| Neck Length (Decimal Inch) | 0.203" |
| Neck Length (Inch) | 13/64" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Radial Depth of Cut (Decimal Inch) | 0.035" |
| Number of Flute | 6 |
| Reach Multiple | (1x) |
| Type | I |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Metric | No |
| Coating | Uncoated |

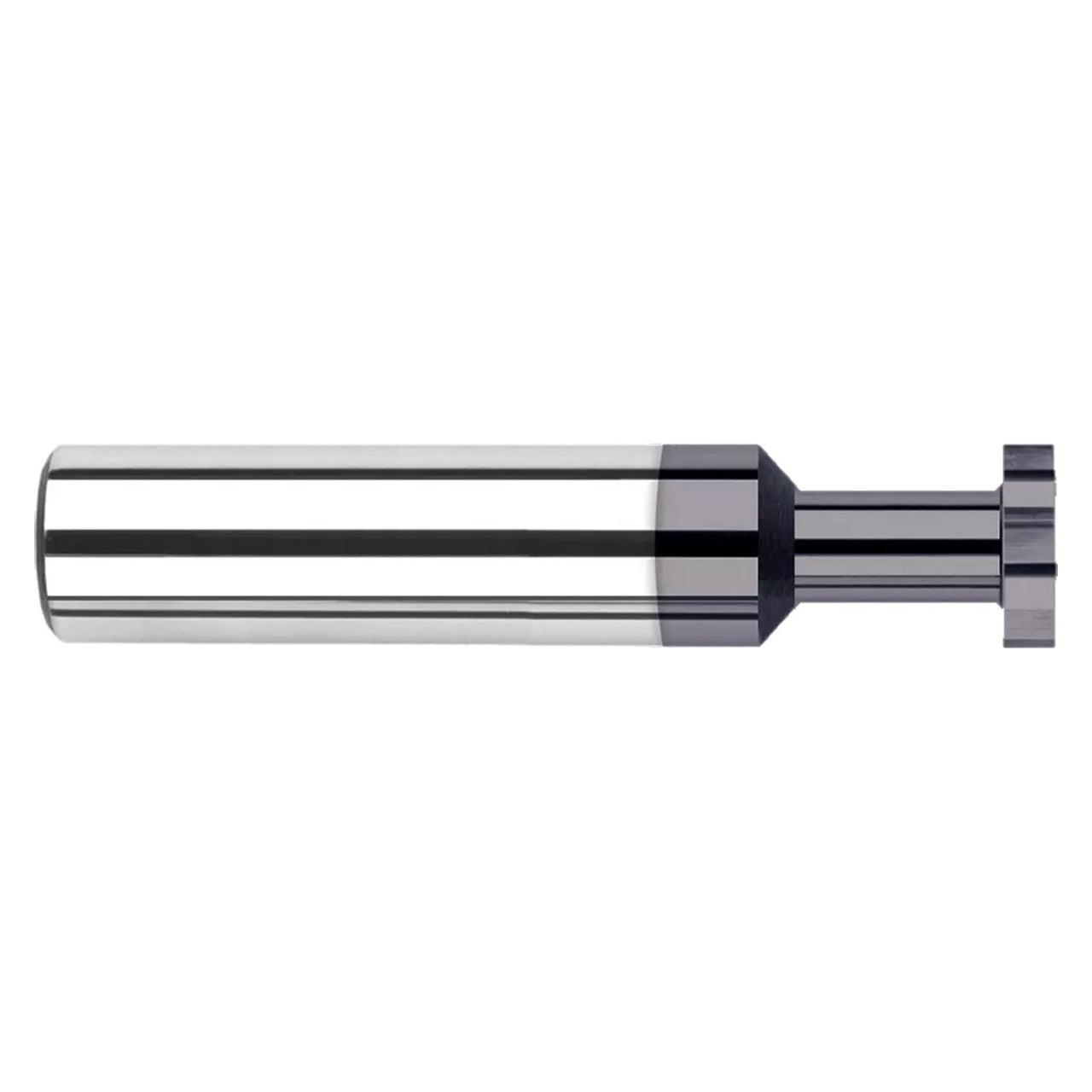

| Product Type | Keyseat Cutter |
