Harvey Tool

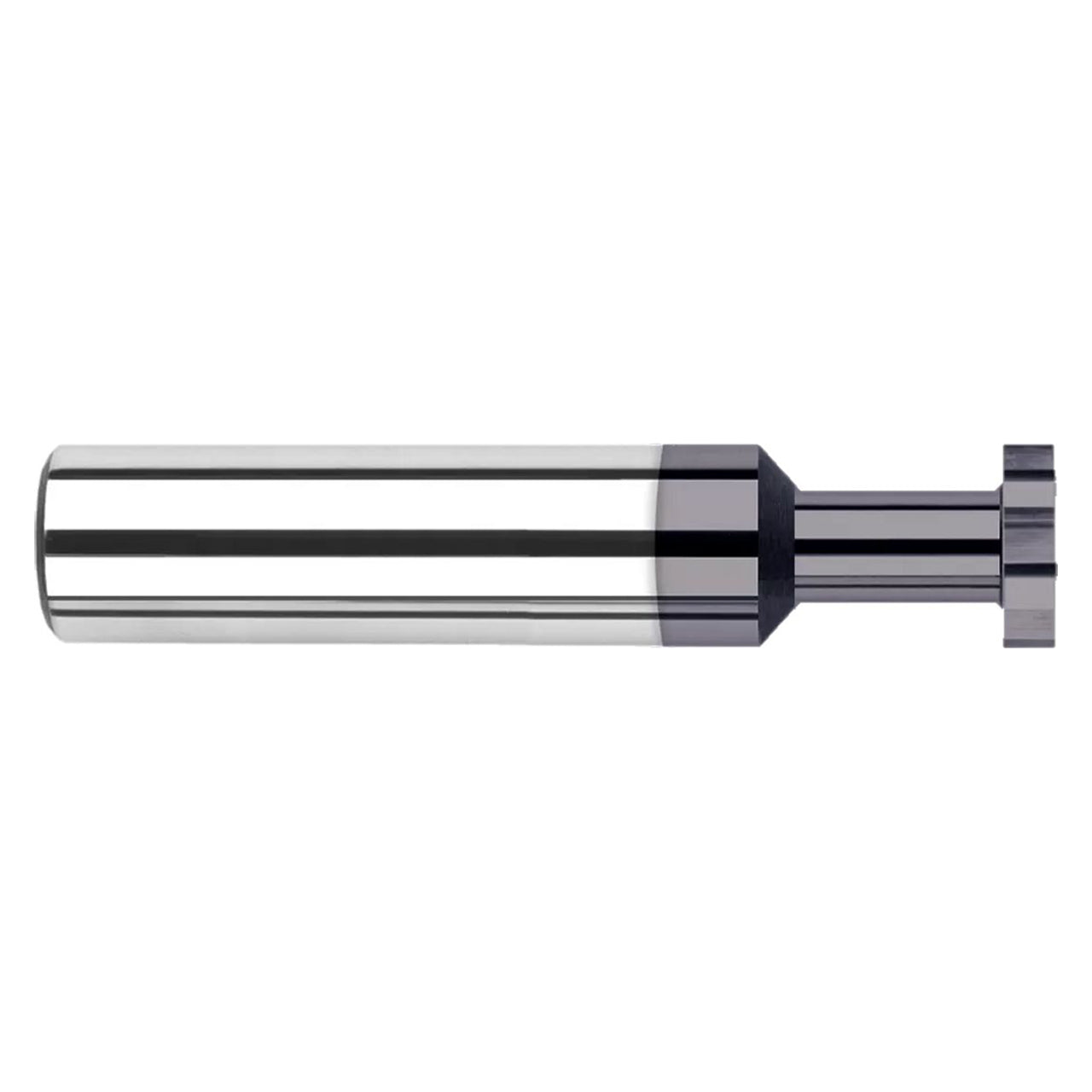

Harvey Tool 716310 | 9/64" Diameter x 3/16" Shank x 0.031" Width x 2" OAL 6 Flute Uncoated Keyseat Cutter

Harvey Tool 716310 | 9/64" Diameter x 3/16" Shank x 0.031" Width x 2" OAL 6 Flute Uncoated Keyseat Cutter

SKU: 25352296

Precio habitual $53.90 USD
Precio habitual $53.90 USD Precio de oferta $53.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 14 Grams

Ver todos los detalles

Product Specifications
Manufacturer Part Number 716310
Cutter Diameter (Decimal Inch) 0.140"
Cutter Diameter (Inch) 9/64"
Neck Diameter (Decimal Inch) 0.070"
Cutter Width (Decimal Inch) 0.031"
Cutter Width (Inch) 1/32"
Neck Length (Decimal Inch) 0.203"
Neck Length (Inch) 13/64"
Overall Length (Decimal Inch) 2.000"
Overall Length (Inch) 2"
Radial Depth of Cut (Decimal Inch) 0.035"
Number of Flute 6
Reach Multiple (1x)
Type I
Shank Diameter (Decimal Inch) 0.187"
Shank Diameter (Inch) 3/16"
Metric No
Coating Uncoated
Product Type Keyseat Cutter
