Product Specifications
| Manufacturer Part Number | 702420 |
| Cutter Diameter (Decimal Inch) | 0.020" |
| Cutter Diameter (mm) | 0.50mm |
| Neck Diameter (Decimal Inch) | 0.019" |
| Length of Cut (Decimal Inch) | 0.060" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Number of Flute | 5 |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Coating | Uncoated |

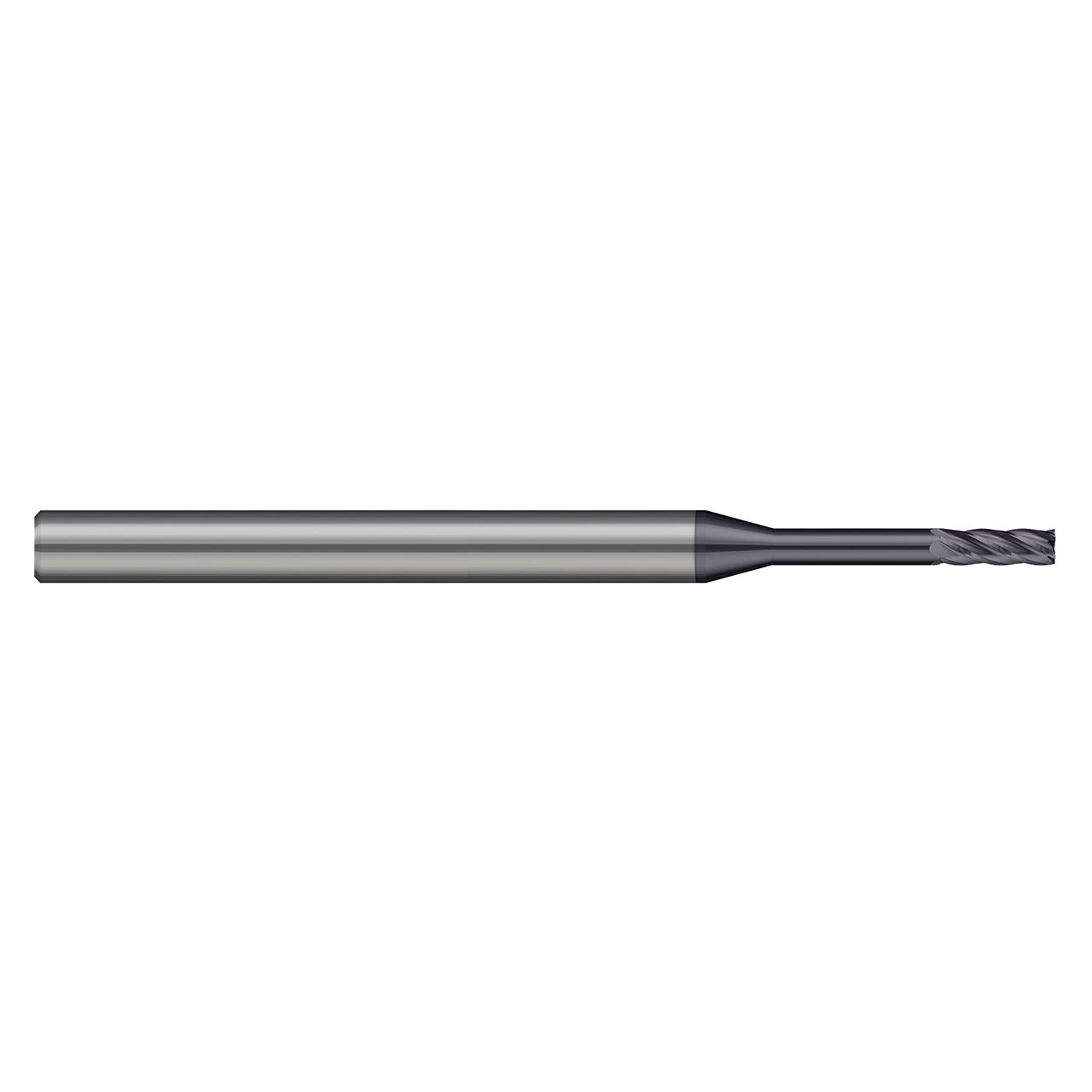

| Product Type | Miniature Square End Mill |
