Product Specifications
| Manufacturer Part Number | 700032-C3 |
| Cutter Diameter (Inch) | 13/16" |
| Cutter Diameter (Decimal Inch) | 0.813" |
| Drill Diameter (Inch) | 17/32" |
| Drill Diameter(Decimal Inch) | 0.531" |
| Flute Length (Decimal Inch) | 3.187" |
| Flute Length (Inch) | 3-3/16" |
| Overall Length (Inch) | 8" |
| Overall Length (Decimal Inch) | 8.000" |
| Point Angle (Degree) | 130 Degree |
| Number of Flute | 2 |
| Size | 1/2" |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (Decimal Inch) | 1.000" |
| Coating | C3 |
| Drill Length (Inch) | 2-21/32" |
| Drill Length (Decimal Inch) | 2.656" |

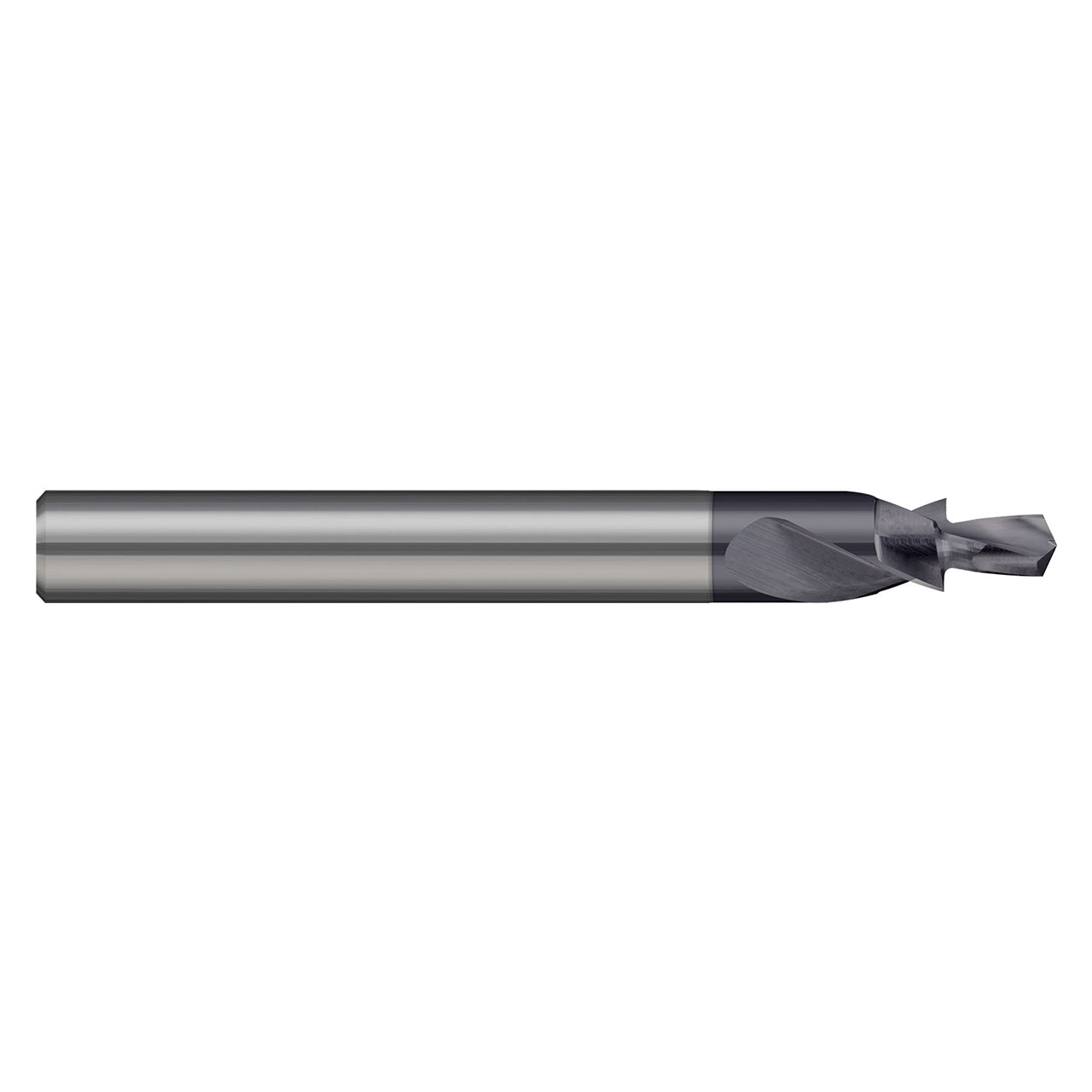

| Product Type | Combined Drill Counterbore |
