Product Specifications

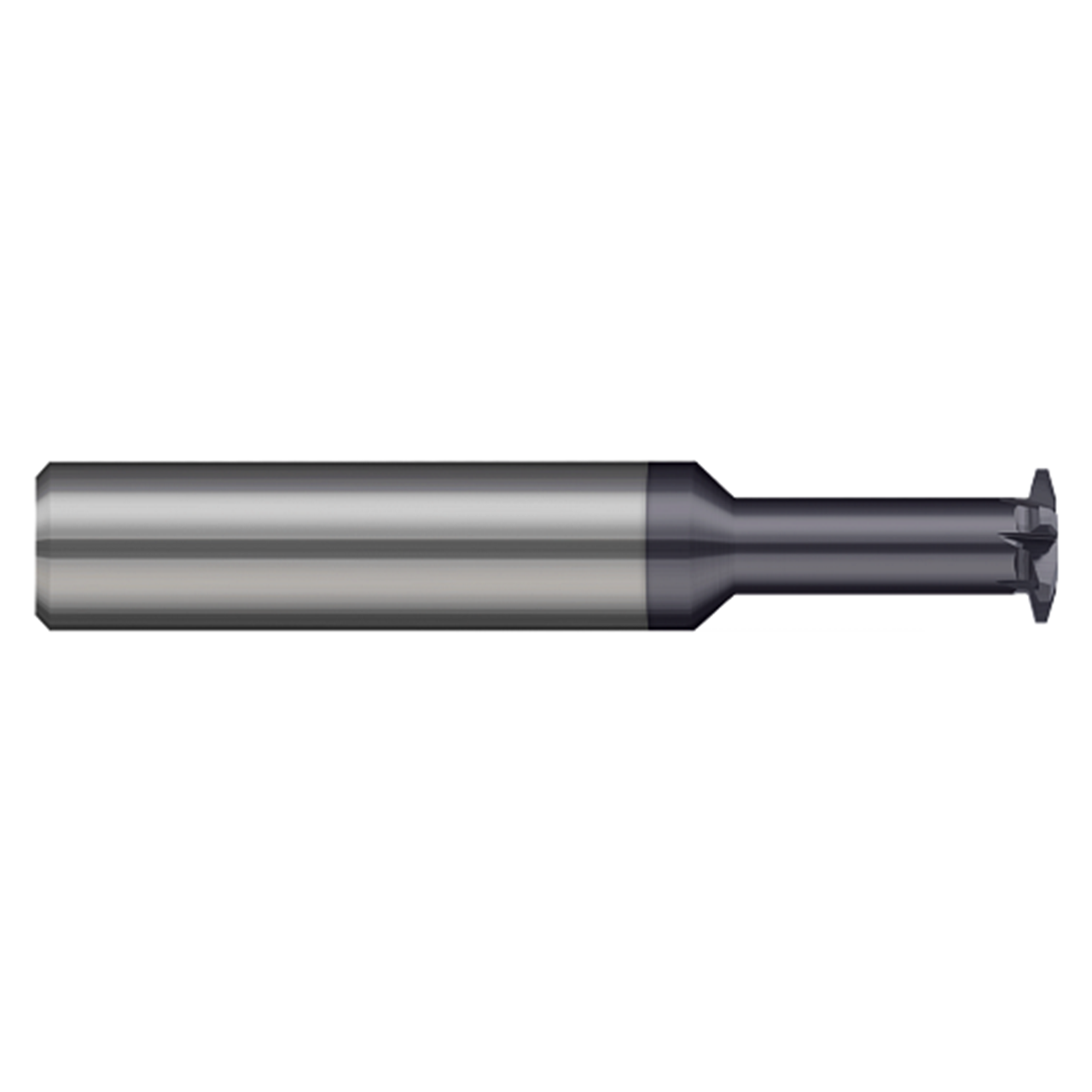

| Manufacturer Part Number | 675875-C3 |
| Cutter Diameter (Decimal Inch) | 0.4500" |
| Neck Diameter (Decimal Inch) | 0.2750" |
| Length of Cut (Decimal Inch) | 0.0790" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Maximum Depth of Thread (Decimal Inch) | 1.3750" |
| Maximum Depth of Thread (Inch) | 1-3/8" |
| Tip Flat (Decimal Inch) | 0.0336" |
| Angle per Side (Degree) | 14.5 Degree |
| Included Angle (Degree) | 29 Degree |
| Number of Flutes | 6 |
| Size | #5/8"-8 |
| Reach Multiple | (5x) |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Coating | C3 |
| Product Type | Thread Milling Cutter |
