Harvey Tool

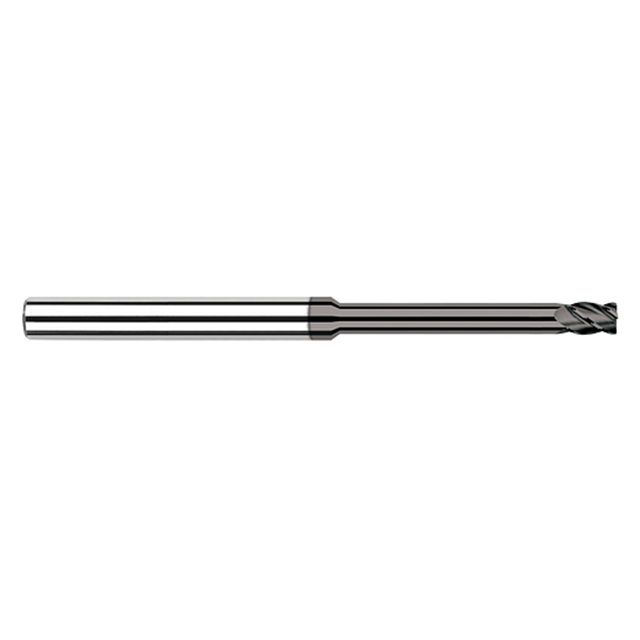

Harvey Tool 65624 | 0.375" Diameter x 0.375" Shank x 0.570" LOC x 6.000" OAL x 0.030" Radius 4 Flute CVD Diamond Coated Carbide Corner Radius End Mill

Harvey Tool 65624 | 0.375" Diameter x 0.375" Shank x 0.570" LOC x 6.000" OAL x 0.030" Radius 4 Flute CVD Diamond Coated Carbide Corner Radius End Mill

SKU: 25407893

Precio habitual $318.70 USD
Precio habitual $318.70 USD Precio de oferta $318.70 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 154 Grams

Ver todos los detalles

Product Specifications
Manufacturer Part Number 65624
Diameter (Inch) 3/8"
Diameter (Decimal Inch) 0.375"
Neck Diameter (Decimal Inch) 0.365"
Length of Cut (Decimal Inch) 0.570"
Overall Reach (Inch) 3"
Overall Reach (Decimal Inch) 3.000"
Overall Length (Inch) 6"
Overall Length (Decimal Inch) 6.000"
Corner Radius (Decimal Inch) 0.030"
Shank Diameter (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.375"
Number of Flutes 4
Material Carbide
Coating CVD Diamond
Product Type Corner Radius End Mill
Warning:

This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
