Harvey Tool

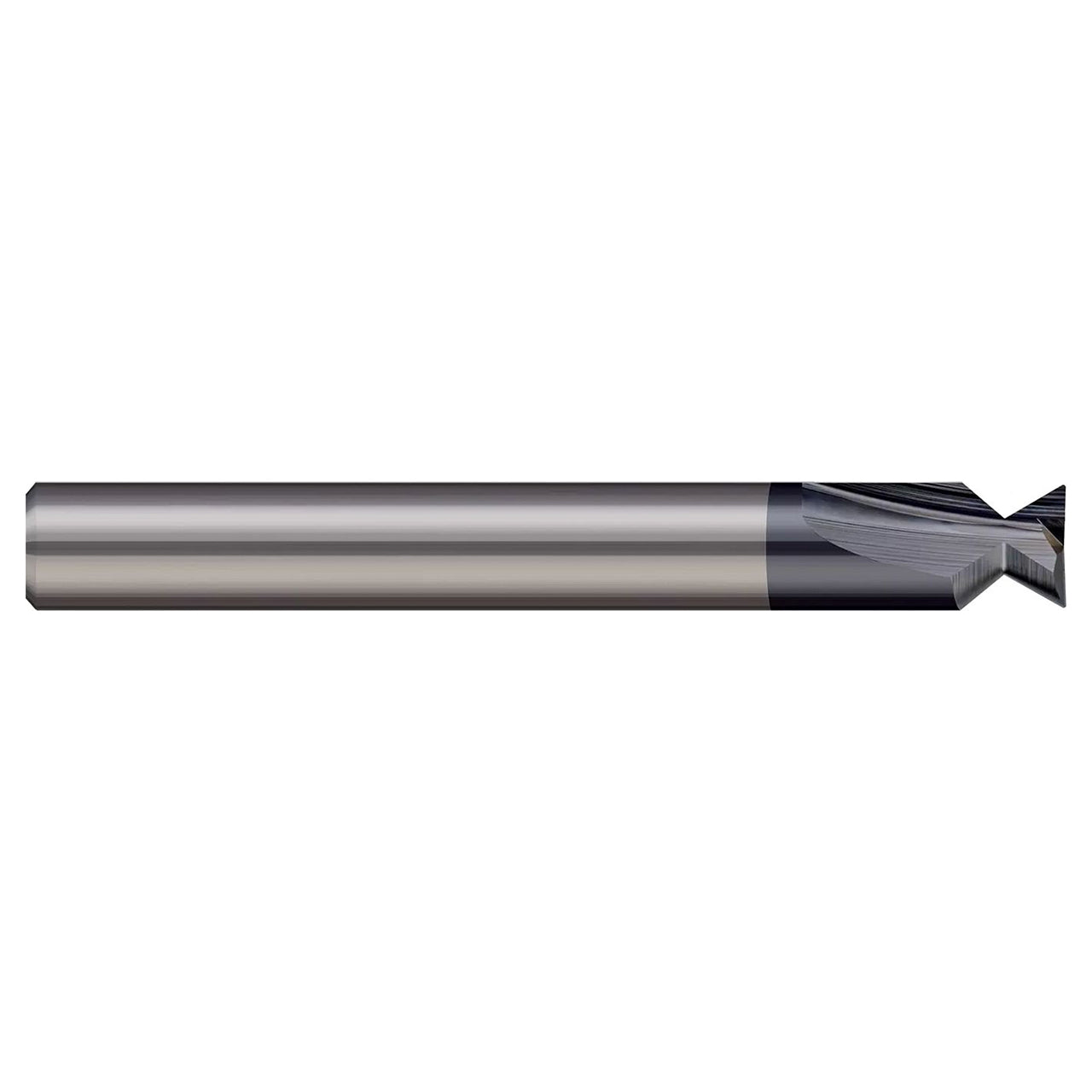

Harvey Tool 65110 | 0.1562" (5/32) Diameter x 0.0780" (5/64) LOC x 0.1875" (3/16) Shank x 60 Degree Uncoated Carbide Tip Radius Dovetail Cutters

Harvey Tool 65110 | 0.1562" (5/32) Diameter x 0.0780" (5/64) LOC x 0.1875" (3/16) Shank x 60 Degree Uncoated Carbide Tip Radius Dovetail Cutters

SKU: 25211188

$90.10 USD
$90.10 USD $90.10 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 65110
Cutter Diameter (Inch) 0.1562" (5/32)
Neck Diameter (Inch) 0.0730"
Length of Cut (Inch) 0.0780" (5/64)
Overall Length (Inch) 2.0000" (2)
Corner Radius (Inch) 0.0050"
Angle per Side 30
Included Angle 60
Flutes 2
Shank Diameter (Inch) 0.1875" (3/16)
Coating Uncoated
