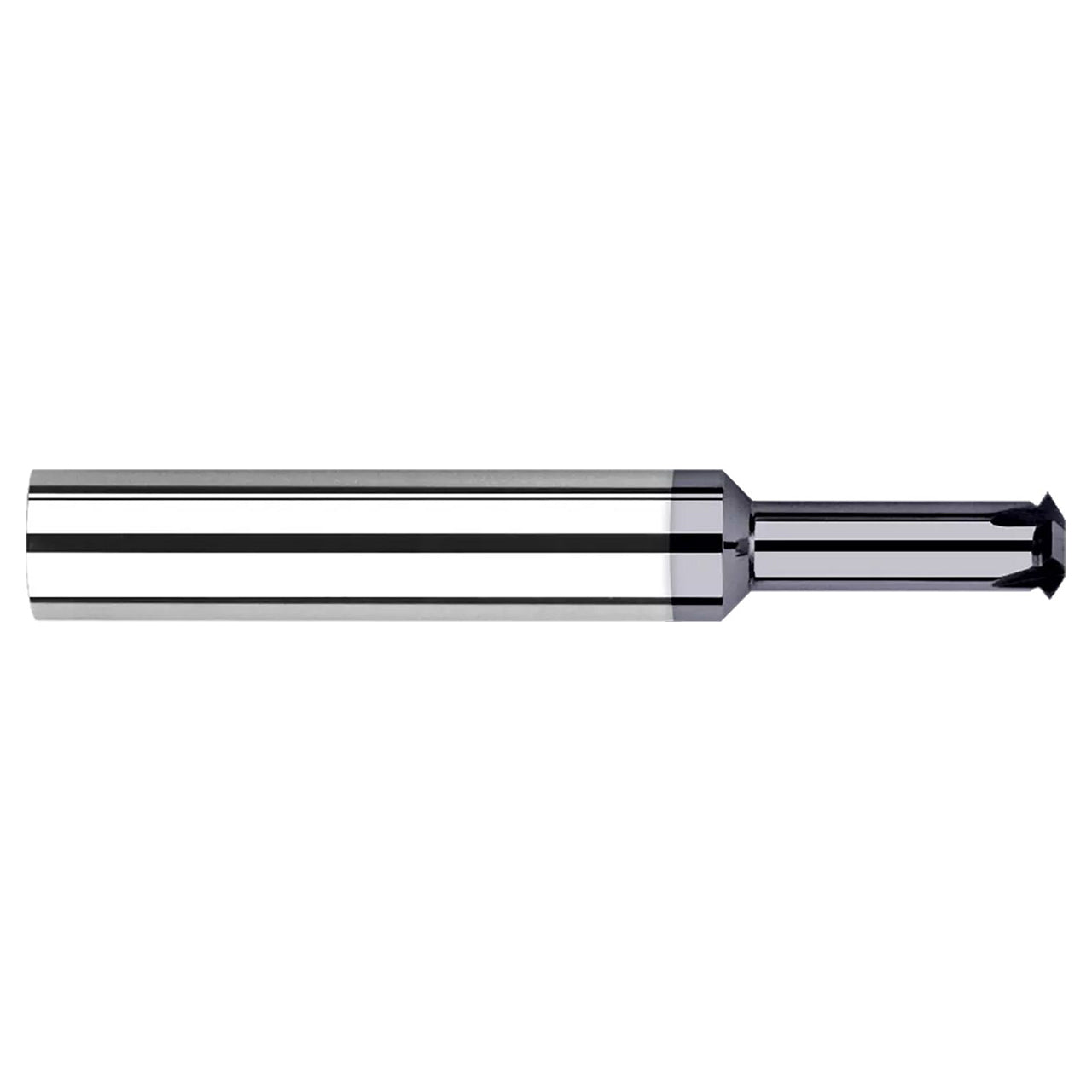

Harvey Tool Thread Milling Cutters - Single Form - UN Threads can mill multiple pitches, and cut internal and external
- Tip of included angle ground to a point
- Mills right hand and left hand threads
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 54275 |
| Cutter Diameter (Inch) | 0.4500" |
| Neck Diameter (Inch) | 0.3000" |
| Length of Cut (Inch) | 0.0870" |
| Overall Length (Inch) | 4.0000" (4) |
| Max Depth of Thread (Inch) | 1.7500" (1-3/4) |
| Angle per Side | 30 |
| Included Angle | 60 |
| Flutes | 6 |
| Size | 5/8 |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating | Uncoated |
