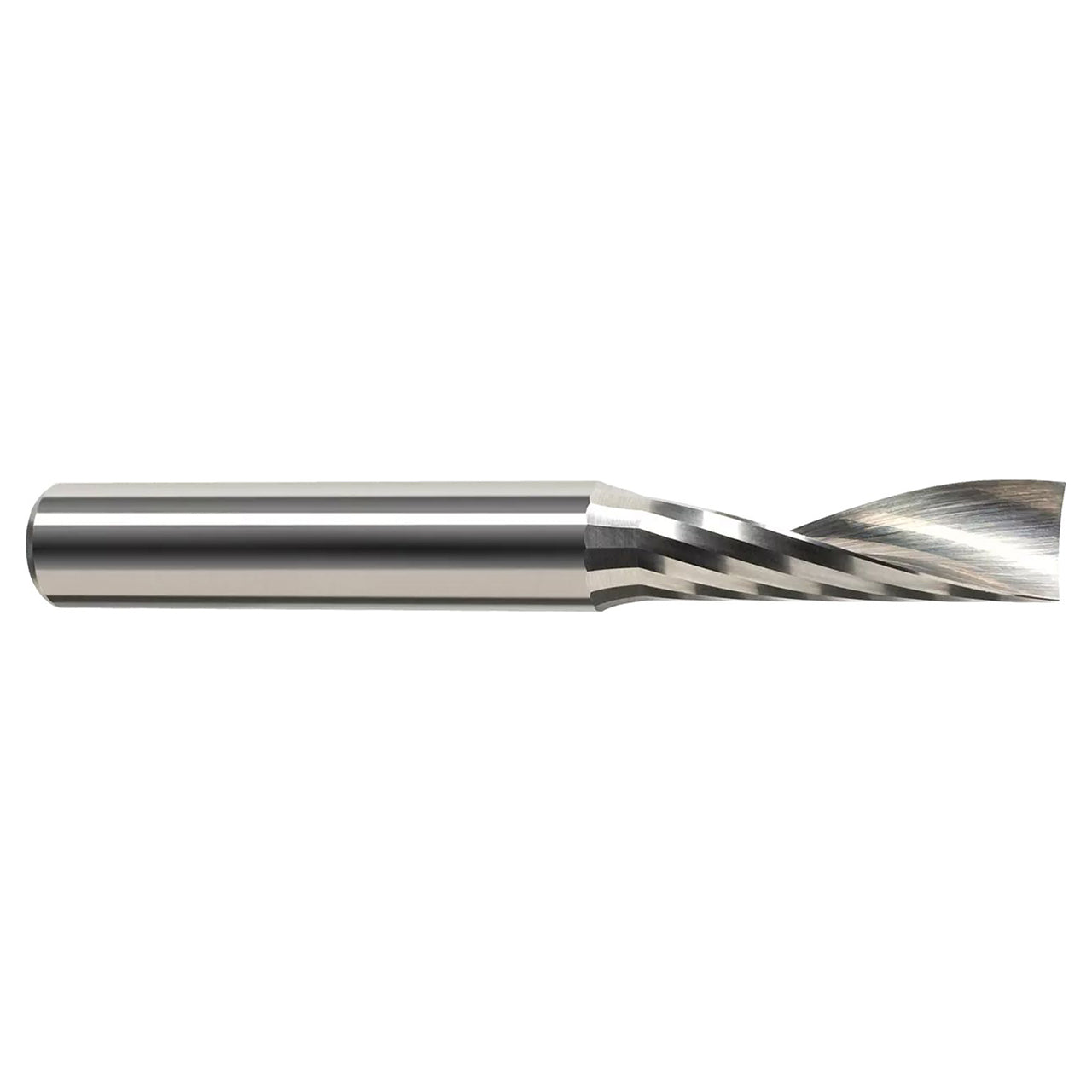

This offering of End Mills for Plastics - Square Upcut - Single Flute results in twice the material removal with improved finish over standard end mills. The high rake, high relief design of this tool produces a sharper edge for improved shearing action while transferring heat into the chip.
- High rake, high relief design produces sharper edge for improved shearing action while transferring heat into the chip
- Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
- Design allows for maximum stock removal while maintaining excellent finish
- Large flute valley creates room for the chip and aids in chip evacuation
- Select sizes available with oversized, router-style shanks
- High flute finish resists chip welding
- Right hand spiral, right hand cut
- Will ramp or plunge if required
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 51505 |
| Cutter Diameter (Inch) | 0.1181" (3 mm) |
| Length of Cut (Inch) | 0.3540" |
| Overall Length (Inch) | 2.0000" (2) |
| Flutes | 1 |
| LOC Multiple | 3x |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating | Uncoated |
