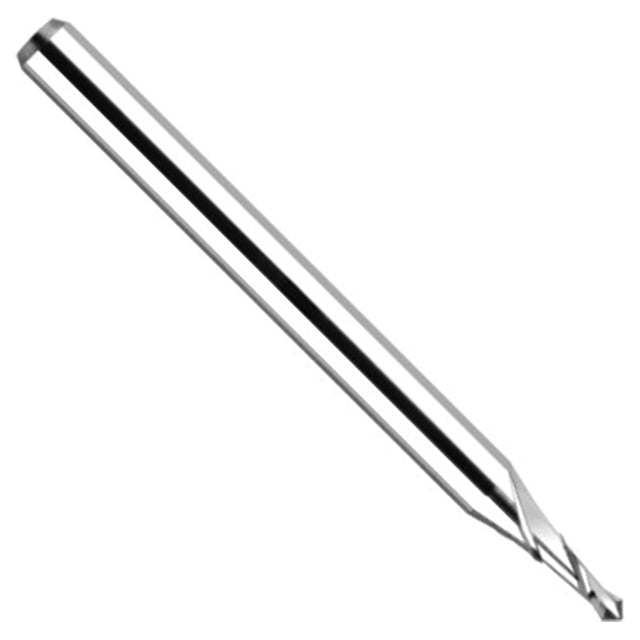

Harvey Tool 39878 | 5/64" Diameter x 15/64" Flute Length x 1/8" Straight Shank x 1-1/2" OAL 140 Degree Included Angle Uncoated Coated Solid Carbide Spotting Drill

Harvey Tool 39878 | 5/64" Diameter x 15/64" Flute Length x 1/8" Straight Shank x 1-1/2" OAL 140 Degree Included Angle Uncoated Coated Solid Carbide Spotting Drill

SKU: 10101630

$29.00 USD
$29.00 USD $29.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

Ver todos los detalles
Features
  • 90 Degree available in long length!
  • Thinned Web to Reduce Walking
  • Self-Centering Point Geometry
  • 2 Flutes
  • Solid Carbide
  • CNC ground in the USA
Product Specifications
Drill Diameter (Decimal Inch) 0.0780"
Drill Diameter (Inch) 5/64"
Angle Per Side 70 Degrees
Included Angle 140 Degree
Flute Length (Decimal Inch) 0.2340"
Flute Length (Inch) 15/64"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (Inch) 1/8"
Overall Length (Decimal Inch) 1.5000"
Overall Length (Inch) 1-1/2"
Finish/Coating Uncoated
Through Coolant No
Material Solid Carbide
Number of Flutes 2
LOC Multiple (3x)
Web Thickness (Decimal Inch) 0.0050"
Type I
Single or Double Single
